SKU
06CEL632B2-K
Casella Class 2 Kit With Advanced 1/1 Octave Band Sound Meter
This is the Class 2 Kit With Advanced 1/1 Octave Band Sound Meter, Acoustic Calibrator, Windshield and Carry Case, an instrument used for measuring if noise is capable of simultaneous measurements of all noise parameters within the workplace. It comes as standard to be set-up for workplace noise legislation and also has a optional high range microphone that is capable of measuring up to 165 dB. The simple user interface means that it is easy to take and record your noise measurement results. Its Also capable of: Simultaneous broadband and frequency measurement, Data markers, Back erase function, Real-time frequency analysis, Single measurement range, Triggered ‘event’ capture.
£3,155.00
Add to Compare
Did you know you can also:
Product Specification unless deselected above
| Class | Class 2 |
|---|---|
| Weightings | A, C, Z |
| Application | Noise at Work |
| Noise Features | 1/1 Octaves |
| Brand | Casella |
| Available Outside the UK? | Yes |
Casella Class 2 Kit with Advanced 1/1 Octave Band Sound Meter
This is the Class 2 Kit With Advanced 1/1 Octave Band Sound Meter, Acoustic Calibrator, Windshield And Carry Case, an instrument used for measuring if noise is capable of simultaneous measurements of all noise parameters within the workplace. It comes as standard to be set-up for workplace noise legislation and also has a optional high range microphone that is capable of measuring up to 165 dB. The simple user interface means that it is easy to take and record your noise measurement results. Its Also capable of: Simultaneous broadband and frequency measurement, Data markers, Back erase function, Real-time frequency analysis, Single measurement range, Triggered ‘event’ capture. The difference between the Class 1 and the Class 2 noise meters is that the Class 1 has a different noise floor, which can be seen in the technical specification and it also has a more precise integrating system than the Class 2.
Capabilities include:
- Cumulative Results
- Period Results
- Profile Results
- Audio Voice Notes
- Marker Events
- External Events
Key Features:
- Ideal for environmental or occupational monitoring
- Easy to use switch-on-and-go functionality
- Latest digital technology with a high resolution colour TFT display
- Pre-configured setups for occupational and environmental measurements
- Voice notes to annotate measurements
- Single measurement range up to 140dB, no range adjustment required
- Data markers, back erase function and audio recording
- Level triggered events for transient measurements
- Simultaneous measurement of all parameters with all frequency and time weighting
- Class 1 or Class 2 models available
- 2GB memory for more than 1 year of data storage
- Removable pre-amp
- Environmental outdoor kit available
| Measurement Range | 20-140dB RMS (143.3dB peak |
| Total Noise Floor | 19dB(A) Class 1, 25dB(A) Class 2 |
| Time Weightings | Fast, Slow and Impulse simultaneously |
| Frequency Weightings | A, C and Z (un-weighted) simultaneously |
| Frequency Bands | 11 Octave bands 16Hz-16kHz (B&C models) 33 Octave bands 12.5Hz-20kHz (C models) |
| Amplitude Weightings | 3, 4 and 5 simultaneously |
| Back Erase | Last 10s in cumulative mode (all models) |
| Timers | Duration 1s-24h |
| On/Off Timers | 6 sets with selectable times and a repeat function |

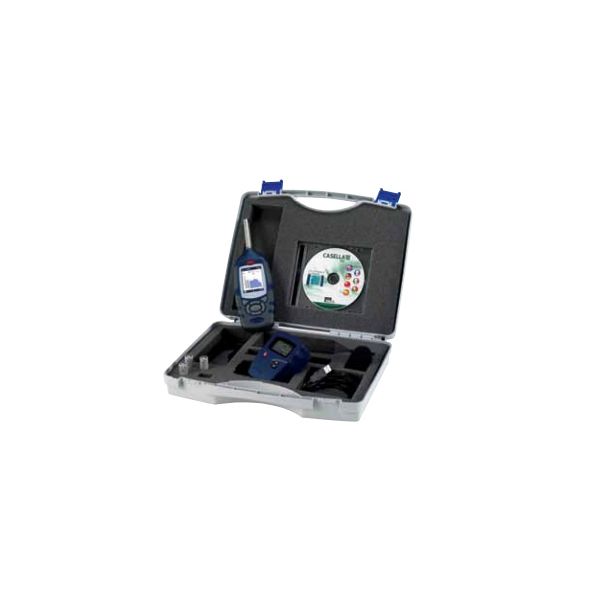

What's in the Box
This Kit includes:
- 1 x CEL632B2 Class 2 Advanced 1/1 Octave Band Sound Meter
- 1 x Class 2 Acoustic Calibrator
- 1 x Windshield
- 1 x Carry Case
Downloads and Datasheets
Software
The Insight Software.
This software enables you to download noise measurements from the CEL600 series sound level meters and the dBadge range of noise dosemeters. when the measurements are once downloaded you can view them in a graphical or tabular format. These then can be allocated to a person, place or process and reports can be generated. As the Insight software works with the CEL620, 630 and dBadge (CEL350) series meters, you will only have to learn one package and only create the database for your entries once.Instrument Configuration and Download.
Any new measurements will be immediately detected and downloaded when a meter is connected to the computer (typically via the USB port). Alongside downloading measurements, the software will also show the meter's calibration information which can be used to configure the meter's settings.Write Your Own Review
