Casella Class 2 Advanced 1/1 Octave Band Sound Meter CEL632B2

SKU: 06CEL632B2

Be the first to review this product

£2,115.30

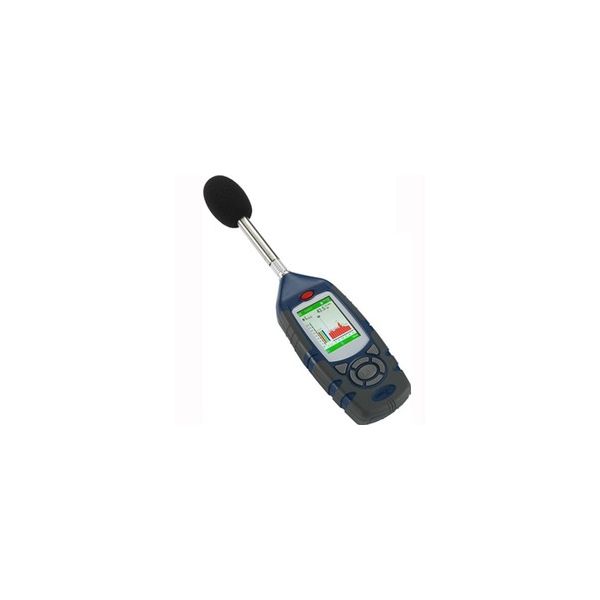

This is the Casella Class 2 Advanced 1/1 Octave Band Sound Meter CEL632B1, an instrument used for measuring noise that is capable of simultaneous measurements of all noise parameters within the workplace. It comes as standard to be set-up for workplace noise legislation and it also has a optional high range microphone that has the ability to measure up to 165 dB. The simple user interface means that it is easy to take and record your noise measurement results. Its Also capable of: Simultaneous broadband and frequency measurement, Data markers, Back erase function, Real-time frequency analysis, Single measurement range, Triggered ‘event’ capture.

* Required Fields

£2,115.30

Did you know you can also:

Casella Class 2 Advanced 1/1 Octave Band Sound Meter CEL632B2
Casella Class 2 Advanced 1/1 Octave Band Sound Meter CEL632B2 Casella Class 2 Advanced 1/1 Octave Band Sound Meter CEL632B2 Casella Class 2 Advanced 1/1 Octave Band Sound Meter CEL632B2 Casella Class 2 Advanced 1/1 Octave Band Sound Meter CEL632B2 Casella Class 2 Advanced 1/1 Octave Band Sound Meter CEL632B2 Casella Class 2 Advanced 1/1 Octave Band Sound Meter CEL632B2 Casella Class 2 Advanced 1/1 Octave Band Sound Meter CEL632B2 Casella Class 2 Advanced 1/1 Octave Band Sound Meter CEL632B2

Have a question about this product? /
Would you like a quote?

- Email us on sales@castleshop.co.uk
- Call us on 01723 584250
- Use the live chat in the bottom right corner

Product Specification unless deselected above

Brand Casella
Application Noise at Work
Noise Features 1/1 Octaves, 1/3 Octaves
Class Class 2
Weightings A, C, Z
Available Outside the UK? Yes

Casella Class 2 Advanced 1/1 Octave Band Sound Meter CEL632B2

This is the Casella Class 2 Advanced 1/1 Octave Band Sound Meter CEL632B1, an instrument used for measuring noise that is capable of simultaneous measurements of all noise parameters within the workplace. It comes as standard to be set-up for workplace noise legislation and it also has a optional high range microphone that has the ability to measure up to 165 dB. The simple user interface means that it is easy to take and record your noise measurement results. Its Also capable of: Simultaneous broadband and frequency measurement, Data markers, Back erase function, Real-time frequency analysis, Single measurement range, Triggered ‘event’ capture. The difference between the Class 1 and the Class 2 noise meters is that the Class 1 has a different noise floor (Check Tech Specification) and it has a more precise integrating system than the Class 2.


Capabilities include:

  • Cumulative Results
  • Period Results
  • Profile Results
  • Audio Voice Notes
  • Marker Events
  • External Events


Key Features:

  • Ideal for environmental or occupational monitoring
  • Easy to use switch-on-and-go functionality
  • Latest digital technology with a high resolution colour TFT display
  • Pre-configured setups for occupational and environmental measurements
  • Voice notes to annotate measurements
  • Single measurement range up to 140dB, no range adjustment required
  • Data markers, back erase function and audio recording
  • Level triggered events for transient measurements
  • Simultaneous measurement of all parameters with all frequency and time weighting
  • Class 1 or Class 2 models available
  • 2GB memory for more than 1 year of data storage
  • Removable pre-amp
  • Environmental outdoor kit available

Technical Specification

Measurement Range 20-140dB RMS (143.3dB peak
Total Noise Floor 19dB(A) Class 1, 25dB(A) Class 2
Time Weightings Fast, Slow and Impulse simultaneously
Frequency Weightings A, C and Z (un-weighted) simultaneously
Frequency Bands 11 Octave bands 16Hz-16kHz (B&C models)
33 Octave bands 12.5Hz-20kHz (C models)
Amplitude Weightings 3, 4 and 5 simultaneously
Back Erase Last 10s in cumulative mode (all models)
Timers Duration 1s-24h
On/Off Timers 6 sets with selectable times and a repeat function

Downloads and Datasheets

Software

The Insight Software.

This software enables you to download noise measurements from the CEL600 series sound level meters and the dBadge range of noise dosemeters. when the measurements are once downloaded you can view them in a graphical or tabular format. These then can be allocated to a person, place or process and reports can be generated. As the Insight software works with the CEL620, 630 and dBadge (CEL350) series meters, you will only have to learn one package and only create the database for your entries once.

Instrument Configuration and Download.

Any new measurements will be immediately detected and downloaded when a meter is connected to the computer (typically via the USB port). Alongside downloading measurements, the software will also show the meter's calibration information which can be used to configure the meter's settings.
