Casella CEL632C1 Class 1 1/3 Octave Sound Meter Kit

SKU: 06CEL632C1-K

Be the first to review this product

£4,037.00
This is the Casella CEL632C2 Class 1 1/3 Octave Sound Meter Kit which has an advanced automatic timing, time history storage and real-time 1/3 octave band filters which means that it is suitable for detailed, long-term occupational noise assessments. The CEL632C Sound Level Meter also measures all the parameters needed for a successful survey of workplace noise. The main parameters are Leq, Peak, Lmax, Fast, Slow and they are all measured simultaneously. There isn't any need to select a measurement range as they have a single span from 20 to 140dB.

* Required Fields

£4,037.00
Casella CEL632C1 Class 1 1/3 Octave Sound Meter Kit
Casella CEL632C1 Class 1 1/3 Octave Sound Meter Kit Casella CEL632C1 Class 1 1/3 Octave Sound Meter Kit Casella CEL632C1 Class 1 1/3 Octave Sound Meter Kit Casella CEL632C1 Class 1 1/3 Octave Sound Meter Kit Casella CEL632C1 Class 1 1/3 Octave Sound Meter Kit Casella CEL632C1 Class 1 1/3 Octave Sound Meter Kit Casella CEL632C1 Class 1 1/3 Octave Sound Meter Kit Casella CEL632C1 Class 1 1/3 Octave Sound Meter Kit Casella CEL632C1 Class 1 1/3 Octave Sound Meter Kit Casella CEL632C1 Class 1 1/3 Octave Sound Meter Kit

Have a question about this product? /
Would you like a quote?

- Email us on sales@castleshop.co.uk
- Call us on 01723 584250
- Use the live chat in the bottom right corner

Product Specification unless deselected above

Brand Casella
Application Noise at Work
Noise Features 1/3 Octaves
Class Class 1
Weightings A, C, Z
Available Outside the UK? Yes

Casella CEL632C1 Class 1 1/3 Octave Sound Meter Kit

This is the Casella CEL632C2 Class 1 1/3 Octave Sound Meter Kit which has an advanced automatic timing, time history storage and real-time 1/3 octave band filters which means that it is suitable for detailed, long-term occupational noise assessments. The CEL632C Sound Level Meter also measures all the parameters needed for a successful survey of workplace noise. The main parameters are Leq, Peak, Lmax, Fast, Slow and they are all measured simultaneously. There isn't any need to select a measurement range as they have a single span from 20 to 140dB.


Features

  • Noise at Work Measurements
  • Hearing Protector Checks (SNR, HML and Octave Band methods)
  • Real-Time Octave and 1/3 Octave Band Filters
  • Data Logging with detailed Time History store
  • Voice Notes and Audio Recording
  • Automatic On/Off Timers
  • Measures Leq, Lepd, Min, Max, etc. Simultaneously
  • Range: 20 to 140 dB(A)
  • Back Erase to remove unwanted noise events
  • Data Markers


Standards

  • IEC 61672 Class 2
  • IEC60851 and IEC 60804 Type 2
  • ANSI S1.4 and ANSI S1.43 to Type 2
  • ANSI S1.11-2004 and IEC 61260 Class 0 (Octave and 1/3 Octave Band Filters)
  • UK and European Noise at Work Regulations


Insight Software

The CEL632C is a data logging meter that does not require any additional software - when plugged into a computer it acts like a memory card. You can manually copy the data to your computer or load it into a spreadsheet program using a small conversion application. However, the Insight software makes this process more convenient, links the measurements to person, place or process, and presents the results graphically. We recommend the Insight software with the CEL632C if you are going to take advantage of the Time History store or if you will be making regular use of the 1/3 octave band filters. In these cases processing the large amounts of data in a spreadsheet can be rather time consuming.

Technical Specification

Measurement range 20 to 140 dB (single range), 143 dB Peak
Display 320 x 240 pixel color TFT
Output to PC USB Mini B
Batteries 3 x AA Alkaline (15 hours with backlight off)
External Power 9 to 14V DC at 250mA (2.1mm connector)
Dimensions 72 x 229 x 31mm, 295g 2.8" x 9.0" x 1.2". 10.4oz
Memory 2GB, 1 year when logging set to 1 second
Timers Duration 1s to 24h On/Off Timers: 6 sets with selectable times and repeat function.
Audio Recording 8kHz sampling, 60 hours recording 24kHz sampling, 10 hours recording
Frequency Weightings A, C and Z (simultaneous)
Time Weightings Fast, Slow and Impulse
Amplitude Weightings Q3, Q4 and Q5
Thresholds 70 to 90 dB (applies to Lavg)
Sound Level LXY, LXYMax, LXYMin, LC-LA
Integrated LXeq, Lavg, LAE
Peak LXPeak
Takt Max LTM3, LTM5, LXIeq
Time History Level 1 Periods of 1 minute to 1 hour
Time History Level 2 Periods of 1 second to 30 mins
Octave and 1/3 Octave LXY, LXYMax, LXeq
Octave Bands 16Hz to 16kHz in 11 bands
1/3 Octave Bands 12.5Hz to 20kHz

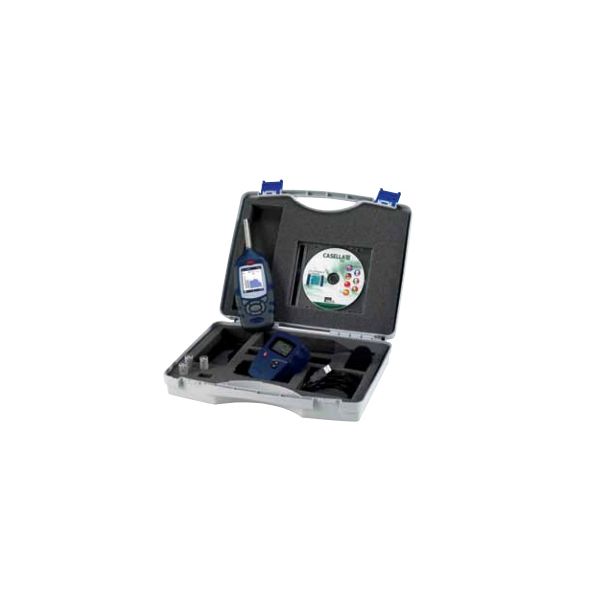

What's in the Box

This Kit Includes:
  • 1 x CEL632C2 Class 2 Advanced 1/3 Octave Band Sound Meter
  • 1 x Class 1 Acoustic Calibrator
  • 1 x Windshield
  • 1 x Carry Case

Software

The Insight Software.

This software enables you to download noise measurements from the CEL600 series sound level meters and the dBadge range of noise dosemeters. when the measurements are once downloaded you can view them in a graphical or tabular format. These then can be allocated to a person, place or process and reports can be generated. As the Insight software works with the CEL620, 630 and dBadge (CEL350) series meters, you will only have to learn one package and only create the database for your entries once.

Instrument Configuration and Download.

Any new measurements will be immediately detected and downloaded when a meter is connected to the computer (typically via the USB port). Alongside downloading measurements, the software will also show the meter's calibration information which can be used to configure the meter's settings.
