SKU
06CEL632C2-K1

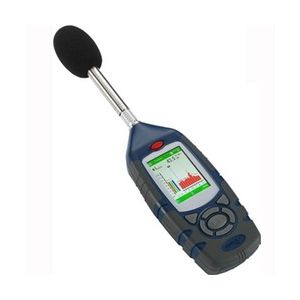

Casella CEL632C2 Class 2 1/3 Octave Sound Meter Kit
This is the Casella CEL632C2 Class 2 1/3 Octave Sound Meter Kit which has an advanced automatic timing, time history storage and real-time 1/3 octave band filters which means that it is suitable for detailed, long-term occupational noise assessments. The CEL632C Sound Level Meter also measures all the parameters needed for a successful survey of workplace noise. The main parameters are Leq, Peak, Lmax, Fast, Slow and they are all measured simultaneously. There isn't any need to select a measurement range as they have a single span from 20 to 140dB.
£4,190.00
Add to Compare
Did you know you can also:
Product Specification unless deselected above
| Class | Class 2 |
|---|---|
| Weightings | A, C, Z |
| Application | Noise at Work |
| Noise Features | 1/3 Octaves, 1/1 Octaves |
| Brand | Casella |
| Available Outside the UK? | Yes |
Casella CEL632C2 Class 2 1/3 Octave Sound Meter Kit
This is the Casella CEL632C2 Class 2 1/3 Octave Sound Meter Kit which has an advanced automatic timing, time history storage and real-time 1/3 octave band filters which means that it is suitable for detailed, long-term occupational noise assessments. The CEL632C Sound Level Meter also measures all the parameters needed for a successful survey of workplace noise. The main parameters are Leq, Peak, Lmax, Fast, Slow and they are all measured simultaneously. There isn't any need to select a measurement range as they have a single span from 20 to 140dB.
Features
- Noise at Work Measurements
- Hearing Protector Checks (SNR, HML and Octave Band methods)
- Real-Time Octave and 1/3 Octave Band Filters
- Data Logging with detailed Time History store
- Voice Notes and Audio Recording
- Automatic On/Off Timers
- Measures Leq, Lepd, Min, Max, etc. Simultaneously
- Range: 20 to 140 dB(A)
- Back Erase to remove unwanted noise events
- Data Markers
Standards
- IEC 61672 Class 2
- IEC60851 and IEC 60804 Type 2
- ANSI S1.4 and ANSI S1.43 to Type 2
- ANSI S1.11-2004 and IEC 61260 Class 0 (Octave and 1/3 Octave Band Filters)
- UK and European Noise at Work Regulations
Insight Software
The CEL632C is a data logging meter that does not require any additional software - when plugged into a computer it acts like a memory card. You can manually copy the data to your computer or load it into a spreadsheet program using a small conversion application. However, the Insight software makes this process more convenient, links the measurements to person, place or process, and presents the results graphically. We recommend the Insight software with the CEL632C if you are going to take advantage of the Time History store or if you will be making regular use of the 1/3 octave band filters. In these cases processing the large amounts of data in a spreadsheet can be rather time consuming.
| Measurement range | 20 to 140 dB (single range), 143 dB Peak |
| Display | 320 x 240 pixel color TFT |
| Output to PC | USB Mini B |
| Batteries | 3 x AA Alkaline (15 hours with backlight off) |
| External Power | 9 to 14V DC at 250mA (2.1mm connector) |
| Dimensions | 72 x 229 x 31mm, 295g 2.8" x 9.0" x 1.2". 10.4oz |
| Memory | 2GB, 1 year when logging set to 1 second |
| Timers | Duration 1s to 24h On/Off Timers: 6 sets with selectable times and repeat function. |
| Audio Recording | 8kHz sampling, 60 hours recording 24kHz sampling, 10 hours recording |
| Frequency Weightings | A, C and Z (simultaneous) |
| Time Weightings | Fast, Slow and Impulse |
| Amplitude Weightings | Q3, Q4 and Q5 |
| Thresholds | 70 to 90 dB (applies to Lavg) |
| Sound Level | LXY, LXYMax, LXYMin, LC-LA |
| Integrated | LXeq, Lavg, LAE |
| Peak | LXPeak |
| Takt Max | LTM3, LTM5, LXIeq |
| Time History Level 1 | Periods of 1 minute to 1 hour |
| Time History Level 2 | Periods of 1 second to 30 mins |
| Octave and 1/3 Octave | LXY, LXYMax, LXeq |
| Octave Bands | 16Hz to 16kHz in 11 bands |
| 1/3 Octave Bands | 12.5Hz to 20kHz |

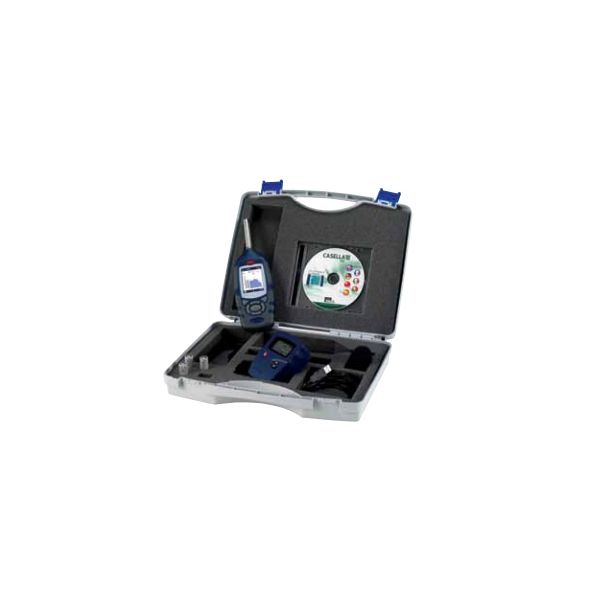

What's in the Box
This Kit Includes:
- 1 x CEL632C2 Class 2 Advanced 1/3 Octave Band Sound Meter
- 1 x Class 2 Acoustic Calibrator
- 1 x Windshield
- 1 x Carry Case
Downloads and Datasheets
Software
The Insight Software.
This software enables you to download noise measurements from the CEL600 series sound level meters and the dBadge range of noise dosemeters. when the measurements are once downloaded you can view them in a graphical or tabular format. These then can be allocated to a person, place or process and reports can be generated. As the Insight software works with the CEL620, 630 and dBadge (CEL350) series meters, you will only have to learn one package and only create the database for your entries once.Instrument Configuration and Download.
Any new measurements will be immediately detected and downloaded when a meter is connected to the computer (typically via the USB port). Alongside downloading measurements, the software will also show the meter's calibration information which can be used to configure the meter's settings.Write Your Own Review
