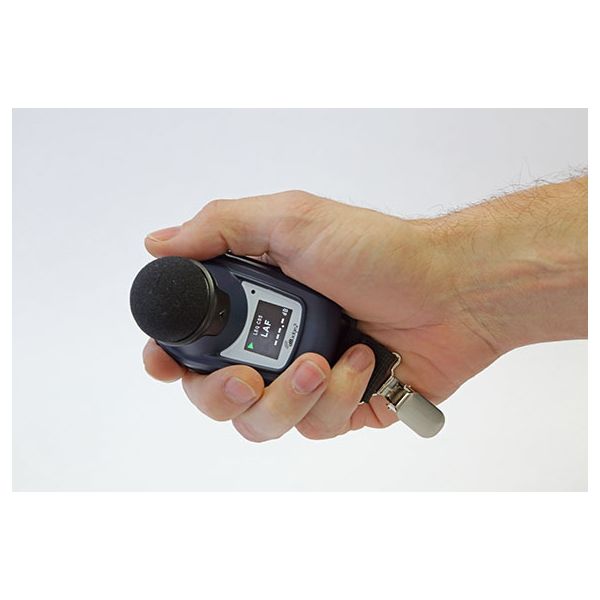

Casella dBadge2 Dosimeter Kit

06DB2K1

Be the first to review this product

£1,563.10

Quick Overview

This is the dBadge2 Dosimeter Kit which is a great tool for a large variety of workplace noise assessments and also campaigns. It also has the added benefit of wireless connectivity which will increase productivity and confidence. The dBadge2 has been specifically designed in order to make the process of noise exposure metrics easier. Just like its predecessor, the dBadge2’s concept captures every possible noise exposure related parameter during a measurement run and then makes it available for subsequent download and analysis.

* Required Fields

£1,563.10

Did you know you can also:

Have a question about this product? /
Would you like a quote?

- Email us on sales@castleshop.co.uk
- Call us on 01723 584250
- Use the live chat in the bottom right corner

Product Specification unless deselected above

Brand Casella
Application Noise at Work
Available Outside the UK? Yes

Casella dBadge2 Dosimeter Kit

This is the dBadge2 Dosimeter Kit which is a great tool for a large variety of workplace noise assessments and also campaigns. It also has the added benefit of wireless connectivity which will increase productivity and confidence.

It has been specifically designed to make the process of noise exposure metrics easier. The dBadge2’s concept captures every possible noise exposure related parameter during a measurement run and then makes it available for subsequent download and analysis. All you have to do is choose which you think is the most relevant parameter to display on the screen. The original dBadge® has proved to be an invaluable tool in monitoring personal exposure. However the dBadge2® represents the next generation and builds on well-established must-have features and usability.


The dBadge2:

  • Monitors your workforce without having to disturb them, and therefore keeps productivity up.
  • Boasts an easy to use and clear colour display
  • Offers an option to analyse your work environment to form a hearing conservation strategy for your workers.
  • Has the ability to monitor multiple devices at once.


It boasts a ‘multiple simulated dosimeter’ capability which will allow you to display noise exposure results according to the different regional and international protocols. The dBadge2 also takes advantage of the OLED display as it colour-codes the D1, D2 and D3 data in order to help review in the field but also with an ability to define colour coded alarm values. The dBadge2 can be custom configured by and downloaded to a PC using the Docking Station and Casella Insight Data Management Software. Once it is downloaded, data can be stored under a worker’s name, location or process so that a database or noise exposure can be built up. The dBadge2 is available as a complete starter kit with everything that you require to get up and running. A kit includes the dBadge of your choice; Standard, Plus or Pro, a CEL-120/2 Acoustic calibrator 3-way combined Docking Station and charger, universal mains power supply, USB cable and Casella Insight data management software, all encased in a kit case that is fully capable of carrying 10 dBadge2 products, and also up to three docking stations.


Key Features:

  • Bluetooth® 4.0 wireless connectivity
  • Airwave App for mobile devices such as phones and tablets
  • Multiple 'simulated' dosimeters
  • Full colour display
  • Motion sensor
  • 1 second time history profiling
  • Pause function
  • Updated & Simplified Casella Insight Plug-in with advanced noise analysis features


Applications:

  • Complete shift exposure measurements
  • Task based measurements
  • Measurements in accordance with CFR 1910.95 (USA), ISO9612:2009, L108 Controlling Noise at Work.
  • Identification of noise sources
  • Selection of hearing protection


Differences Between dBadge2, dBadge2 Plus & dBadge2 Pro:

Technical Specification

Standards ANSI S1.25:1991 R2007, IEC 61252 Ed 1.1 (2002-3)
Linear Operating Range 55.0-140.3 dB (A) RMS
Dynamic Range 96dB
Peak Measurement Range 90.0-143.3dB (C or Z weighted)
Sound Exposure Range 0.0- 6,100.0 Pa2Hours
0.00 – 22,000,000.00 Pa2Sec
0.0-100,000.0% Dose
Frequency Weightings A,C and Z, Type 2
Time Weightings Fast, Slow and Impulse
Under Range Indication 1dB below the bottom of the range,
Overload Indication 140.4dB RMS
Peak Overload Value 143.4dB Peak
Stabilisation Time <3 seconds after power up
Operating Temperature Range 0°C to +40°C (for <±0.5dB error limit)
-10°C to +50°C (for <±0.8dB error limit)
Ambient Pressure Range <±0.5dB over 85 - 112kPa,
Humidity Range <± 0.5dB over 30% - 90% (non-condensing),
Magnetic Fields Negligible
Storage Temperature Range -10°C to +50°C,
Battery Internal NiMH, 800mAH
Run Time Typically 35 hours using Broadband Mode
Typically 15 hours using Octave mode
Charge Time <6 hours from fully discharged
Maximum Run Duration 24 hours
Maximum number of Runs 100
Storage Capacity Internal USD Flash memory - 300 hours of run data (including 1 second profile data) and up to 90 minutes of event audio recording.
PC Interface USB 2.0 Full speed 12Mbps via Docking Station.
Dimensions 85L x 54W x 55H mm
Weight 117g
Environmental I.P Rating IP65 (with permeable air vent)

What's in the Box

This Kit Includes:
  • 1 X Casella dBadge2 Dosimeter
  • 1 X Calibrator
  • 1 X Charger
  • 1 X Software Package
  • 1 X Case

Downloads and Datasheets

Software

The Insight Software.

This software enables you to download noise measurements from the CEL600 series sound level meters and the dBadge range of noise dosemeters. when the measurements are once downloaded you can view them in a graphical or tabular format. These then can be allocated to a person, place or process and reports can be generated. As the Insight software works with the CEL620, 630 and dBadge (CEL350) series meters, you will only have to learn one package and only create the database for your entries once.

Instrument Configuration and Download.

Any new measurements will be immediately detected and downloaded when a meter is connected to the computer (typically via the USB port). Alongside downloading measurements, the software will also show the meter's calibration information which can be used to configure the meter's settings.
