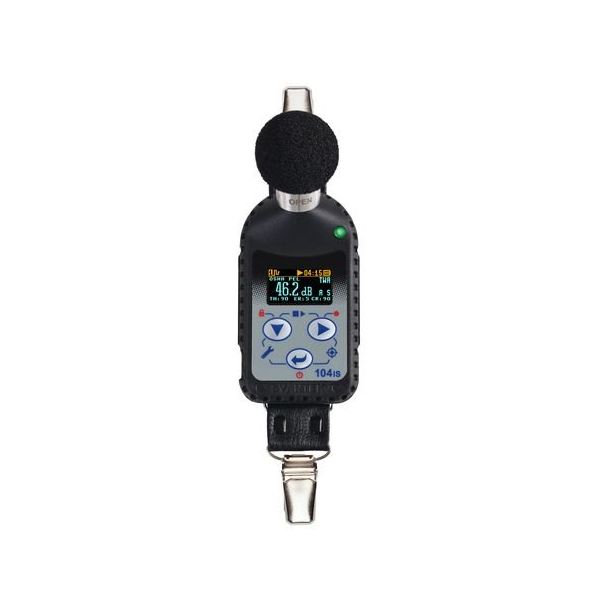

The SV 104BIS is an intrinsically safe version of the personal noise dosimeter, the SV 104. Both instruments provide a new approach to occupational health and safety noise monitoring with options such as 1/1 octave band real-time analysis and audio events recording functions which high quality in an instrument of this size.
All results are clearly displayed on the clear OLED screen which offers excellent visibility in full daylight or darkness.
Docking Station required to charge the unit(s) (see options)
|Measurement Parameters||Dose, Lepd, Leq|
|Weightings||A, C, Z|
|Application||Noise at Work|
|Available Outside the UK?||No|
This personal dosimeter has a strong 1/2" MEMS microphone enabling easy calibration using most commonly available acoustic calibrators. The new microphone has a large dynamic range of the 90 dB which allows to measure noise from 60 dBA to 140 dBA. The long list of microphone advantages includes also the autocalibration feature and TEDS memory that stores the calibration info in the microphone itself. The auto-calibration means performing the acoustic calibration automatically once the microphone is inserted into the calibrator. The SV 104IS is a cable-free dosimeter and is typically attached to the user’s shoulder, close to the ear using the mounting clips supplied. The instrument works with Svantek’s health and safety software package, “Supervisor”, that provides various tools for data analysis and reporting. The docking station supports data transfer to the PC through the infrared interface as well as handles the battery charging. Rechargeable batteries of SV 104IS are able to power the instrument for 50 hours.
|Standards||IEC 61252 ed1.1 (2002); ANSI S1.25-1991 (R2007);Class 2 IEC 61672-1 ed2.0 (2013) ATEX: EN 50303, EN 60079-0, EN 60079-11, EN 60079-26, certificate number: FTZU 14 ATEX 0055X IECEx: IEC 60079-0, IEC 60079-11, IEC 60079-26, certificate number IECEx FTZU 15.0001X|
|Weighting filters||A, C and Z|
|Time constants||Slow, Fast, Impulse|
|Exchange rates||2, 3, 4, 5, 6|
|Measurement results||SEL8, E, E_8h, LEPd, PSEL, Ltm3, Ltm5, Ln statistics, Peak Threshold Counter (PTC), PTP, Upper Limit Time (ULT), TWA, Projected TWA (PrTWA), Lc-a, OVL|
|Microphone||Class 2 microphone, 1/2" housing|
|Measurement range||60 dBA RMS ÷ 140.1 dBA Peak|
|Frequency range||20 Hz ÷ 10 kHz|
|Dynamic range||90 dB|
|Data logging||Summary results for the measurement time Time-history logging of Leq/Max/Min/Peak with 1s logger step|
|Voice comments||Audio records on demand, created before or after measurement, added to measurement file|
|Audio recording||Audio events recording, trigger and continuous mode, 12 kHz sampling rate, wav format (option)|
|1/1 octave||Real-time analysis in octave band filters 9 filters with centre frequencies from 31.5 Hz to 8 kHz (option)|
|Display||OLED 128 x 64 pixels|
|Interfaces||USB 2.0 client|
|Keyboard||3 push buttons|
|Power Supply||Rechargeable cell; operation time > 50 hours1|
|USB Interface||500mA HUB|
|Environmental Conditions||Temperature: from -10 oC to 50 oC Humidity: up to 90 % RH, non-condensed|
|Dimensions||88 x 49.5 x 19.2 mm|
|Weight||117g with batteries|
This piece of advanced software supports Svantek measuring instruments. Each Svantek device is is easy to use and a complete measuring systems because of the functionalities and extended capabilities in this advanced application. The software has been divided for several specialised modules by distinguishing application fields in order to give users the perfectly customised, powerful and sophisticated tool. The functions provided by the main module include measurement data downloading from instruments to PC, measurement setups creating, basic Leq/RMS recalculation, measurement results in text, tabular and graphical format, export data to spread sheets or text editor applications.
