Svantek SV 106 Human Vibration Meter and Analyser

SKU: 06SV106

Be the first to review this product

£2,162.00

A revolutionary pocket-sized 6 channel vibration meter system for hand arm and whole body vibration allowing for measurement of both hands or tri-axial seat transmission.

* Required Fields

£2,162.00

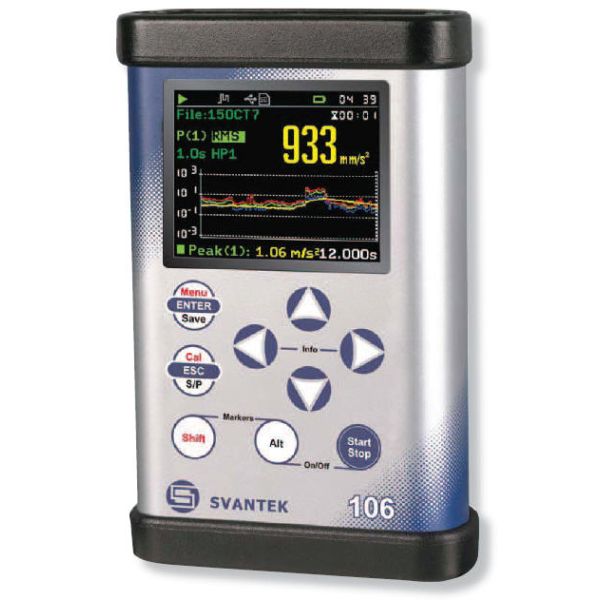

SV 106 6 Channel Vibration Meter
SV 106 6 Channel Vibration Meter SV 106 6 Channel Vibration Meter Hand-arm accelerometer in use on power tool SV 106 6 Channel Vibration Meter SV105 Tri-Axial Hand-Arm Accelerometer SV38V Seat Pad Accelerometer Ultimus Human Vibration Kit with Tri-axial Accelerometer and Seat Pad Seat pad accelerometer in position

Have a question about this product? /
Would you like a quote?

- Email us on sales@castleshop.co.uk
- Call us on 01723 584250
- Use the live chat in the bottom right corner

Product Specification unless deselected above

Brand Svantek
Measurement Hand Arm Vibration, Whole Body Vibration
Available Outside the UK? No

SV 106 Human Vibration Meter and Analyser

Human vibration measurement has never been easier with this hand arm and whole body system. Along with the SV106 six channel human vibration meter and analyser this measurement system can simultaneously measure vibration levels for both hands or tri-axial SEAT transmission.

Using the computational power of a digital signal processor the SV106 can measure real-time single and third octave levels along with the required vibration measurements for ISO 2631 and ISO 5349, including RMS, Peak, Peak to Peak, VDV, MTV, A(8) and Dose, with all required weighting filters and band limiting filters for HVM measurements.

Built in 16MB non-volatile memory and additional slot for an external Micro SD card (kit is supplied with a 4GB card) can record data for time history logging and time domain signal recording. Results and data can then be easily downloaded to a PC for for analysis. The PC software can even be used to set up the vibration meter prior to use.

Using the SV38V vibration seat pad makes whole-body vibration measurements easier and can be placed directly on a seat cushion, a floor or fixed to the back of the seat.

The SV105A tri-axial accelerometer enables easy measurement of hand-arm vibration regardless of the tool being used. The alternative SV150 or KD1006 triaxial accelerometers are designed for easy direct attachment to tools and equipment being measured.

The six channel dual input meter allows for 2 x SV105A, SV150 or KD1006 tri-axial accelerometers to be used to measure both hands simultaneously. Using a combination of 1 x SV105A accelerometer and 1 x SV38V seat pad accelerometer is also possible providing simultaneous Hand-arm and Whole Body measurements.

SV 106 Features:

  • Tri-Axial vibration system and analyser with optional whole-body vibration
  • Measures vibration levels meeting ISO 8041:2005, ISO 2631-1,2 & 5 (including VDV and MTVV) and ISO 5349
  • Dual input with 2 profiles with each channel
  • Micro SD card for mass data storage
  • Easy to use interface with colour display



Please Note - This product is available in the UK only
<

Technical Specification

Standards ISO 8041:2005, ISO 2631-1,2&5, ISO 5349
Meter Mode RMS, VDV, MTVV or Max, Peak, Peak-Peak, Vector, A(8), Dose, ELV, EAV Simultaneous measurement in six channels with independent set of filters and detector constants
Filters Wd, Wk, Wm, Wb (ISO 2631) and Wh (ISO 5349) and Band Limiting filters
RMS and RMQ Detectors Digital true RMS & RMQ detectors with Peak detection, resolution 0.1 dB Time constants from 100 ms to 10 s
Data Logger Time-history data including meter mode results and spectra (option)
Time Domain Recording Simultaneous x, y, z time-domain signal recording, sampling frequency selectable: 375 Hz, 3 kHz or 6 kHz (option)
Analyser 1/1 octave real-time analysis with centre frequencies from 0.5 Hz to 2000 Hz 1/ octave real-time analysis with centre frequencies from 0.4 Hz to 2500 Hz
Measurement Range Transducer dependent: 0.01 ms2 RMS ÷ 50 ms2 Peak (with SV 38V and Wd filter) 0.1 ms2 RMS ÷ 5000 ms2 Peak (with SV105A and Wh filter)
Frequency Range 0.1 Hz ÷ 2000 Hz
Input 2 x LEMO 5-pin: six channels IEPE type or Direct and two channels for force transducers
Dynamic Range 90 dB
Force Range 0.2 N ÷ 100 N (dedicated channels for force transducers)
Sampling Rate 6kHz
Memory Internal 16 MB non-volatile memory Micro SD flash card slot
Interfaces USB 1.1 Client, Extended I/O - AC output (1 V Peak) or Digital Input/Output (Trigger - Pulse)
Power Supply Four AA batteries (alkaline) - operation time > 12 h (6.0 V / 1.6 Ah)2/ Four AA rechargeable batteries (not included) - operation time > 16 h (4.8 V / 2.6 Ah)2
USB interface - 500 mA HUB
Environmental Conditions Temperature from -10°C to 50°C/
Humidity up to 90% RH, non-condensed
Dimensions 140 x 83 x 33 mm (without accelerometer)
Weight (Approx) 390 grams including batteries (without accelerometer) SV105A Accelerometer
Performance Number of axis: 3
Sensitivity (± 5 %): 10.2 mV/(m/s2) at 15.915 Hz, HP1
Measurement Range 0.024 ms-2 RMS,Wh ÷ 180 ms-2 PEAK
Frequency Response (± 3 dB) 1 Hz ÷ 2763 Hz
Resonant Frequency 5.5 kHz (MEMS transducer)
Electrical Noise < 240 µV RMS, Wh weighting, < 2.2 mV RMS, HP1 weighting
Electrical Supply current: < 5,0 mA
Supply Voltage 5.2 V ÷ 16 V
Bias voltage (IEPE): 2,5 V ± 0.05 V
Output Impedance 51 Ω Charge / discharge time constant (start-up time): 30 sec. typ.
TEDS memory: installed (power supply pin)
Environmental Conditions Maximum vibration: 980 m/s2 shock survival for MEMS sensor
Temperature Coefficient <+0.012 dB/°C/ Temperature: from -10°C to +50°C
Humidity up to 90 % RH, non-condensed
Physical Sensing element: MEMS
Cable integrated 1.4 meters long
Connector LEMO 5-pin plug (GA2007 compatible)
Dimensions 69.6 mm x 31.4 mm dimension; thickness from 8.3 mm to 15 mm
Weight 50-60 grams (including cable and one of vibration contact adapters)

What's in the Box

This Kit Includes:
  • 1x SV106 6 channel human vibration meter
  • Choice of accelerometers from drop down boxes
  • 1x Carry case for vibration meter and accessories
  • 1x PC Software for data viewing and analysis
