The BW Next Generation Multi-Gas Platform combines the best features of the legacy portable gas detectors with
the latest technology and capabilities.
Workers can continue to get the HoneywellBW™ experience and performance they expect in addition to new features
which make it even easier to increase multi-gas safety and compliance.
| Type Of Gas | Lower Explosive Limit (LEL), Hydrogen Sulphide, Carbon Monoxide, Oxygen |
|---|---|
| Features | Data Logging |
| Number Of Gases | 4 Gas |
| Available Outside the UK? | Yes |
| Brand | BW |
| Boxed Weight (kg) | 0.5 |
The BW Next Generation Multi-Gas Platform combines the best features of the legacy portable gas detectors with
the latest technology and capabilities.
Workers can continue to get the HoneywellBW™ experience and performance they expect in addition to new features
which make it even easier to increase multi-gas safety and compliance.
REAL-TIME GAS READINGS AT A GLANCE

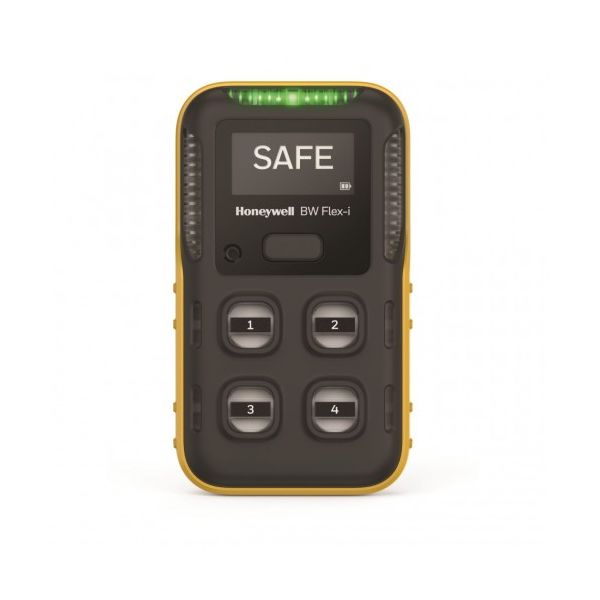

Honeywell BW™ Flex features a large high-resolution display with readings available in a wide range of languages. Vital safety information is conveyed clearly and effectively, enabling faster decision-making to protect lives in hazardous environments. Its innovative design, compact size and ease of use builds on the legacy of Honeywell BW™ gas detection products.
INTELLIGENT SENSORS FOR INCREASED SAFETY & UPTIME
Honeywell BW™ Flex incorporates i-Series intelligent sensors which monitor sensor status and provide advanced predictive calibration, maintenance and end-of-life information in real-time. These advanced alerts help reduce the likelihood of failure and increase awareness so preventive action can be taken to avoid safety incidents and unexpected downtime.
Size: 108.2 mm x 61.5 mm x 43.2 mm (4.29 in x 2.44 in x1.7 in) with Alligator Clip
108.2 mm x 61.5 mm x 37.8 mm (4.29 in x 2.44 in x 1.49 in) with Klick Fast Stud
Weight: 185 g (6.5 oz) with Alligator Clip, 169 g (6 oz) with Klick Fast Stud
Working
Temperature: -40°C to 60°C (-40°F to 140°F)
Working
Humidity: 5% to 95%
Ingress
Protection: IP66, IP68
Alarms: Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, Negative Drift, Over Limit, Multi-alarm
Self-Test: Perform diagnostic of sensor, circuitry on activation;
Activated detector automatically performs analog sensor diagnostic every 10 minutes,
Digital sensor diagnostic every second
Typical
Battery Life: 15 hours with Catalytic LEL (with NDIR CH4 sensor)
Connected
Worker: Bluetooth® Low Energy (BLE) – Ability to connect to Honeywell’s Safety Communicator App, Device Configurator App and SSDC Software
User options*: Change High, Low, TWA and STEL alarm set points
Latching alarms
Set Calibration and/or bump test reminders
Assign worker and location assignments
Always on
*User options only available via Device Configurator and Safety Suite Device Configurator
Certifications
and Approvals: ATEX, IEC Ex, contains FCCID, contains IC, CSA approval pending
Warranty: Three-year warranty for sensors and detector
Gas Name Measuring Range Resolution Working Temperature
CO 0 to 2000 ppm 1 ppm -40°C to 60°C (-40°F to 140°F)
H2S 0 to 200 ppm 1 ppm -40°C to 60°C (-40°F to 140°F)
O2 0 to 30% VOL 0.1% VOL -40°C to 60°C (-40°F to 140°F)
NDIR-CH4 0 to 100% LEL 1% LEL -40°C to 60°C (-40°F to 140°F)
Standard Package Contents
• Detector complete with sensors, stainless steel alligator clip, concussion-proof housing and built-in rechargeable battery
• Calibration/test cap and hose
• USB charging cable
• Quick Start Guide
