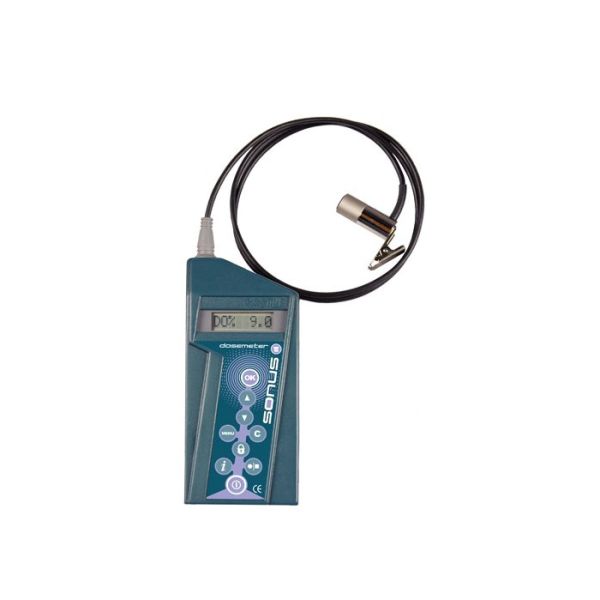

Castle GA257L Industrial Logging Pocket Dosemeter

SKU: 01GA257L

Be the first to review this product

£736.00

The SONUS Pocket Dosemeters are designed to be powerful and easy to use. These dosemeters are small and tough so measurements and data can be collected throughout the working period. Data can be reviewed on screen or downloaded to a PC for further analysis.



The SONUS GA257L which is also fully compliant with IEC 61252:1993 adds logging capabilities, allowing data to be downloaded to a PC using the Castle dBdataPro noise analysis software, and measures sound pressure levels and Leq.

* Required Fields

£736.00
Castle GA257L Industrial Logging Pocket Dosemeter
Castle GA257L Industrial Logging Pocket Dosemeter Castle GA257L Industrial Logging Pocket Dosemeter

Have a question about this product? /
Would you like a quote?

- Email us on sales@castleshop.co.uk
- Call us on 01723 584250
- Use the live chat in the bottom right corner

Product Specification unless deselected above

Brand Castle Group
Application Noise at Work
Noise Features Data Logging
Measurement Parameters Leq, Dose, Lepd
Available Outside the UK? Yes

Castle GA257L Industrial Logging Pocket Dosemeter

The SONUS Pocket Dosemeters are designed to be powerful and easy to use. These dosemeters are small and tough so measurements and data can be collected throughout the working period. Data can be reviewed on screen or downloaded to a PC for further analysis The SONUS GA257L which is also fully compliant with IEC 61252:1993 adds logging capabilities, allowing data to be downloaded to a PC using the Castle dBdataPro noise analysis software, and measures sound pressure levels and Leq


Parameters measured

  • User selectable Exchange Rate (3dB, 4dB or 5dB)
  • User selectable Criterion Level (75dB, 80dB, 85dB or 90dB)
  • User selectable Threshold Level (-5dB, -10dB or OFF)
  • Zpeak
  • % Dose
  • Lep'd (Lex)
  • % DOHR (Dose/Hour)
  • Pa2h (Lep'd expressed in Pascals)
  • Exposure Time
  • Lockable Keypad
  • Constructed from tough crack resistance plastic


The GA257L dosemeter also features

  • Lp (SPL)
  • Leq
  • Cpeak
  • LE (SEL)
  • Real Time Clock
  • Data-Logging
  • DC Power In
  • AC Output

Technical Specification

Standards IEC61252-1993 (Personal Sound Exposure Meters)
Linear Operating Range 70dB
Detector Characteristics RMS and Peak
Exchange Rate 3dB
4dB
5 dB
Criterion Level 75dB
80dB
85dB
90dB
Threshold Level -5dB
-10dB
OFF
Peak 3dB above top of selected range
Display Custom alphanumeric LCD, digit size 7mm x 5mm
Memory 2100 Data Intervals Maximum
Calibration 91.0 to 120.0dB @ 1KHz
Batteries 1 x PP3 (9V) Approximately 12 hours continuous use
Operating Temperature -10 to + 50ºC
Humidity Effect < 0.5dB from 25% to 90% RH
Vibration No Effect on Instrument
Processing A to D Converter: 12-bit, 325kHz sampling. 8MHz, micro-controller
Dimensions 60mm (width) x 35mm (depth excluding pocket clip) x 135mm (height)
Microphone Cable Length 800mm (including rubber sleeve and microphone)
Weight 220g (including battery)
EMC:
  • Emissions: EC 61000-6-3, EN61326-1:2006, CISPR 22:1997 EN55022:1998, FCC Rules, Part 15 2003 Class B
  • Immunity: IEC 61000-6-2:2005, EN61326-1:2005 Levels ±4kV (Contact), ±8kV (Air)
  • Amp Mod: IEC 61000-6-2:2005, Level 10V/m
