SKU
01NK111/NK112

dBAir Handheld Safety & Environmental System

Castle Group
Rating: 5
100 % of 100
4 Viewed
Add to Wish List Email to a Friend
The Castle dBAir Handheld Safety & Environment System is the flexible and powerful solution for Noise at Work Assessments and Outdoor Noise Measurements by hand.
  • Exposure Assessments
  • Factory Noise Mapping
  • SNR & HML Hearing Protection Assessment
  • Litigation Defence
  • Attended Outdoor Measurements
  • BS4142 Assessments
  • Construction Noise
  • Compliance Testing
  • Attended Boundary noise monitoring
  • Hand-held Environmental Measurements

The Castle dBAir works wirelessly with The Castle Cloud software and it's FREE to use! Make your account today at www.TheCastleCloud.com. All dBAir Systems come with a 3 Year Pro licence.

US$5,247.74
Add to Compare

Product Specification unless deselected above

More Information
Measurement Parameters Dose, Lepd, Ln, Leq, Exposure Points, Le, Peak, Lden, Lmax, Lnight, Lspl, Lmin, Lday
Class Class 1
Weightings A, C, Z
Application Noise at Work, Environmental Noise, Long Term Noise Monitoring
Noise Features 1/3 Octaves, 1/1 Octaves, Hearing Protection Database, Statistics, Audio Events Recording, WiFi Data Transfer, Data Logging
Brand Castle Group
Available Outside the UK? Yes

Download the Detail

dBAir Handheld Safety & Environmental System

The Castle dBAir Handheld Safety & Environment System is the flexible and powerful solution for Noise at Work Assessments and Outdoor Noise Measurements by hand. This dBAir system is more than capable of carrying out a vast variety of different tasks listed below.


Handheld dBAir Safety & Environmental Assessment System

The Castle dBAir Safety and Environmental Handheld Assessment System was specifically designed to carry out:

  • Exposure Assessments
  • Factory Noise Mapping
  • SNR & HML Hearing Protection Assessment
  • Litigation Defence
  • Attended Outdoor Measurements
  • BS4142 Assessments
  • Construction Noise
  • Compliance Testing
  • Attended Boundary noise monitoring
  • Hand-held Environmental Measurements


Handheld dBAir Safety & Environmental Assessment System 1/3 Octaves

The Castle dBAir Safety and Environmental Handheld Assessment System with 1/3 Octaves was specifically designed to carry out:

  • Exposure Assessments
  • Factory Noise Mapping
  • SNR, HML & Octave Band Hearing Protection Assessment
  • Litigation Defence
  • Noise Control Effectiveness
  • BS4142 assessments
  • Tonal Noise Assessment to 1/3 Octave
  • Construction noise
  • Compliance testing
  • Attended Boundary noise monitoring
  • Hand-held environmental measurements
  • Tonal Noise Assessment to 1/3 Octave


The Castle Cloud

The Castle dBAir uses the revolutionary new Castle Cloud Software. Hosted online, all you need to access it's entire software capabilities is an internet browser.

  • Data Wirelessly Uploads from the dBAir to the Castle Cloud
  • Data can still be downloaded using a cable if required
  • Secure Data Storage and Automatic Back-ups
  • Simple and slick interface allowing even first time users to capitalise on The Castle Cloud's vast features
  • Automatic updates mean no downloads ever required.


The Castle dBAir works wirelessly with The Castle Cloud software and it's FREE to use! Make your account today at www.TheCastleCloud.com.
All dBAir Systems come with a 3 Year Pro licence.

Simon Bull announces the NEW Castle dBAir WiFi Sound Meter

Technical Specification

Applicable Standards IEC 61672-1:2013 IEC 61260-1:2014 (Where Octave Bands Fitted) IEC 61252:1993 amendment 1:2000 (Where Exposure Fitted)
Microphone Class 1:Type 1 Pre-Polarised ½” (50mV/Pa) Condenser Microphone -26 dB ± 2 dB re 1V/Pa Class 2:Type 2 Pre-Polarised ½” (25mV/Pa) Condenser Microphone –32 dB ± 3 dB re 1V/Pa
Measurement Ranges Linear Operating Range: 90dB
Noise Floor Typical ’A’ WeightingFrequency WeightingsMeasurement 1: A, C or Z Measurement 2: A, C or Z
Frequency Range 1 Hz - 20 kHz (electrical characteristics) Class 1: 12.5 Hz - 20 kHz (including microphone) Class 2: 16Hz - 16kHz (including microphone)
Time Weighting Measurement 1: Slow, Fast, Impulse Measurement 2: Slow, Fast, Impulse
Display 2.4” Full Colour TFT 240x320 pixels
Dual Measurements Simultaneous dual measurement with independent time and frequency weightings
Octave Band Analysis Where fitted 1/1 or 1/3 octave band analysis on measurement 1 only.

Measurement Parameters

dBAir Safety: LSPL, LEQ, LMAX, LMIN, Peak, LEP’d, Exposure Points, Dose, Hearing Protector Calculator
dBAir Safety Octave: LSPL, LEQ, LMAX, LMIN, Peak, LEP’d, Exposure Points, Dose, Hearing Protector Calculator. 1/1 Octaves:
dBAir Environmental LSPL, LE, LEQ, LMAX, LMIN, Peak, Ltm3, Ltm5, Lday, Lnight, Ldn, Lden, NA, 10 user-definable Ln values (pre-set to: L1, L2, L5, L10, L50, L90, L95, L98, L99) plus LAF* for Noise act assessment.
dBAir Environmental Octave: LSPL, LE, LEQ, LMAX, LMIN, Peak, Ltm3, Ltm5, Lday, Lnight, Ldn, Lden, NA, 10 user-definable Ln values (pre-set to: L1, L2, L5, L10, L50, L90, L95, L98, L99) plus LAF* for Noise act assessment. 1/1 or 1/3 Octaves: LSPL, LE, LEQ, LMAX, LMAX, Ln’s, Peak. 1/3 Octaves.
dBAir Safety & Environmental LSPL, LE, LEQ, LMAX, LMIN, Peak, LEP’d, Exposure Points, Dose, Hearing Protector Calculator, Ltm3, Ltm5, Lday, Lnight, Ldn, Lden, NA, 10 user-definable Ln values (preset to: L1, L2, L5, L10, L50, L90, L95, L98, L99) plus LAF* for Noise act assessment.
dBAir Safety & Environmental Octave: LSPL, LE, LEQ, LMAX, LMIN, Peak, LEP’d, Exposure Points, Dose, Hearing Protector Calculator, Ltm3, Ltm5, Lday, Lnight, Ldn, Lden, NA, 10 user-definable Ln values (pre-set to: L1, L2, L5, L10, L50, L90, L95, L98, L99) plus LAF* for Noise act assessment. 1/1 or 1/3 Octaves.
Languages English UK, English US, Chinese, French, German, Italian, Portuguese Brazilian, Russian, Spanish.
Time History Short Interval: 10ms to 60m Long Interval: 1s to 24h Smart Timer, Duration Timer or Interval Timer Memory 16GB, 32GB, 64GB Input / Output Connection Micro USB Type B
Power Batteries: 4 x AA (1.5V) Life: Up to 12 Hours continuous operation (screen settings dependent) USB Socket
Size and Dimensions: Including Pre-Amplifier: 210mm (H) x 70mm (W) x 30mm (D) Excluding Pre-Amplifier: 145mm (H) x 70mm (W) x 30mm (D)
Weight 480g approximately (including batteries)

Available Accessories

  • GA611 Class 1 Tri-level Level Calibrator
  • KA017 Kit Case for dBAir
  • KA022 Weatherproof Enclosure
  • PSU6 Power Supply
  • ZL1093-01 Microphone Extension Cable (1m)
  • ZL1061-01 AC Output Cable

What's in the Box

NK111 Handheld dBAir Safety & Environmental Assessment System

  • GA141SE dBAir Safety & Environment Class 1
  • GA611 Calibrator, Tri-level, Class 1
  • CCPRO3 3 Year Pro Account for Castle Cloud (5 Users, 5 Instruments)
  • dB001 dBAir Rubber Case

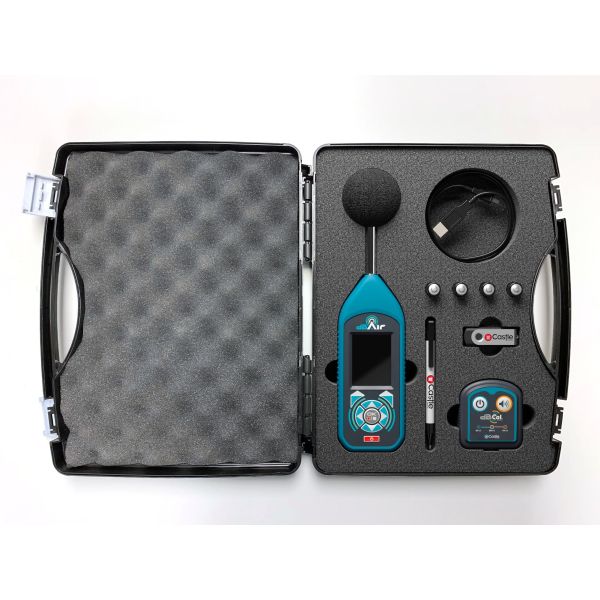

NK112 Handheld dBAir Safety & Environmental Assessment System 1/1 & 1/3 Octaves

  • GA141SEO dBAir Safety & Environment Octave (1/1, 1/3) Class 1
  • GA611 Calibrator, Tri-level, Class 1
  • CCPRO3 3 Year Pro Account for Castle Cloud (5 Users, 5 Instruments)
  • KA017 Protective System Carry Case (dBAir)
  • dB001 dBAir Rubber Case

Downloads and Datasheets

Download English Manual: dBAir Sound Level Meter Brochure

Download Brochure in English: dBAir Sound Level Meter Manual

Download Brochure in Spanish: dBAir Sound Level Meter Brochure in Spanish

Software

Manage your data professionally with secure cloud software

With secure Cloud software at TheCastleCloud.com you can securely access your data from any internet browser on any device. TheCastleCloud is a feature packed noise analysis software system, with added benefits:

  • No downloads ever required
  • No installation required
  • Unlimited number of devices
  • Extra security through Cloud hosting
  • Data is automatically backed up

Find out more at TheCastleCloud.com


Key Features

  • Data Wirelessly Uploads from the dBAir to the Castle Cloud
  • Data can still be downloaded using a cable if required
  • Secure Data Storage and Automatic Back-ups
  • Simple and slick interface allowing even first time users to capitalise on The Castle Cloud's vast features
  • Automatic updates mean no downloads ever required.
  • Customised Reporting
  • Free "Calculators"
  • Free Guides and Help Videos
  • Free Instrument Register

Any Device, Anywhere.

PC, Mac, Tablet or phone, you can access your account and data from any device, anywhere in the world!

No Cables Necessary

At the push of a button the dBAir wirelessly, quickly and securely sends all of your data to your account in The Castle Cloud.

Secure Backup

Not only do we regularly back-up all your data onto secure servers, you can also download your own data at any time onto your device.

Instant Data - No Software Needed

As soon as you log into your Castle Cloud account, your data will be waiting for you primed for analysis and report creating. Alternatively, use a USB cable to copy a csv file straight off the meter!

Easily Manageable

Set Administration Levels for different staff, ensuring the safety of your data whilst ensuring you get the most out of your results.

Why Cloud?

Cloud softare isn't just the future, it's the present! If you use Apple, Dropbox, Microsoft or Google then you're already on the cloud and benefiting from the power and flexibility that brings.

The Castle dBAir works wirelessly with The Castle Cloud software and it's FREE to use! Make your account today at www.TheCastleCloud.com. All dBAir Systems come with a 3 Year Pro licence.

Model Comparison

dBAirSonikSonus

Sound Meter Range >>

dBAir Sonik Sonus

Description >>

Top of the range sound level meters with extensive features, including WiFi Data Transfer and optional octave band analysis. Dedicated sound meters for Occupational and Environmental Noise assessments with very easy operation and impressive battery life. Proven and fully compliant sound level meters at an impressively low price.

Models >>

Click to visit the product page

GA141S GA141E GA141SE
GA142S GA142E GA142SE
GA116L GA116E GA116I
Safety Environmental Integrating
SAFETY ENV. SAFETY & ENV.
SAFETY ENV. SAFETY & ENV.
SAFETY ENV. INT.
Features
Voice Memo Recording


Audio Events Recording



1/1 Octave Bands


1/3 Octave Bands



Overload
Data Logging

Advanced Data Logging


USB Connectivity

WiFi Data Transfer


PC Software – Castle dBData


Cloud Software
castlecloud.com

Colour Screen

Download data as .CSV


Multi-Language

Parameters
LP (SQL)
LEQ
LMIN

LMAX
APEAK

CPEAK
ZPEAK

(Percentiles) LN



LTM3



LTM5



Noise Exposure Pa2h



% DOSE



HSE Exposure Points



LEPD (LEX)



LAVG


TWA


LE (SEL)


LDAY



LEVENING



LNIGHT



LDN



LDEN



NA (Level exceedance count)



Specifications
Battery Type
4 x AA (1.5v) 4 x AA (1.5v) 4 x AA (1.5v)
4 x AA (1.5v) 4 x AA (1.5v) 4 x AA (1.5v)
1 x PP3 (9v) 1 x PP3 (9v) 1 x PP3 (9v)
Battery Life *
8+ hrs 8+ hrs 8+ hrs
24+ hrs 24+ hrs 24+ hrs
8+ hrs 8+ hrs 8+ hrs
A weighting Noise Floor
16.0dB 16.0dB 16.0dB
16.0dB 8.0dB 16.0dB
18.6dB 12.0dB 32.0dB
C weighting Noise Floor
15.0dB 15.0dB 15.0dB
17.2dB 9.4dB 17.2dB
18.2dB 12.0dB 38.0dB
Z weighting Noise Floor
25.0dB 25.0dB 25.0dB
18.9dB 11.8dB 18.9dB
20.6dB 14.5dB N/AdB
Class
1 or 2 1 1 or 2
1 or 2 1 1 or 2
1 or 2 1 1 or 2
Time History
Advanced Advanced Advanced
Basic Basic Basic
Basic Basic N/A
No. of Ranges
2 2 2
3 3 3
3 3 3
Total Linear Range
25 - 140 20 - 130 25 - 140
25 - 140 20 - 130 25 - 140
32 - 140 22 - 130 41 - 140
Frequency Weighting (A, C, Z)
A, C, Z A, C, Z A, C, Z
A, C, Z A, C, Z A, C, Z
A, C, Z A, C, Z A, C
Time Weighting (Fast, Slow, Impulse)
F, S, I F, S, I F, S, I
F, S, I F, S, I F, S, I
F, S, I F, S, I F, S
Memory Size
32GB+ 32GB+ 32GB+
4MB 4MB 4MB
4MB 4MB N/A+

  *Screen settings dependant Comparison chart R1
