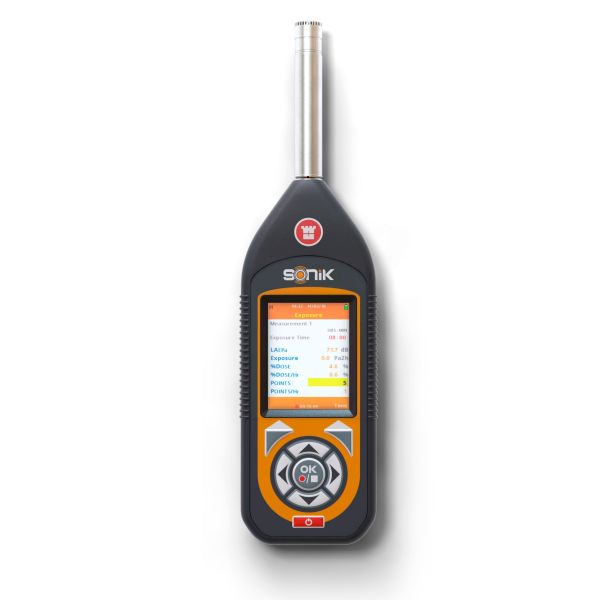

SONIK-S Sound Level Meter for Occupational Noise

SKU: 01GA142

Be the first to review this product

£1,050.00

Workplace Noise Measurements with Castle Sonik-S


The SONIK-S helps you protect your workforce from over exposure to noise, and helps you ensure your company is complying with The Control of Noise at Work Regulations 2005.


With it’s simple measurement set up and intuitive interface, the SONIK-S makes conducting occupational noise surveys simple and straightforward.


Housed in a modern and attractive body, it has a large colour screen, easy to use interface and is fully compliant with IEC 61672-1:2013 and IEC61252:1993. Scroll down to read more.

* Required Fields

£1,050.00
SONIK-S Sound Level Meter
SONIK-S Sound Level Meter SONIK Sound Meter Occupational Noise Sound Meter performing Noise Measurement SONIK Noise Assessment SONIK Sound Meter performing Noise Assessment SONIK-S Sound Level Meter for Occupational Noise

Have a question about this product? /
Would you like a quote?

- Email us on sales@castleshop.co.uk
- Call us on 01723 584250
- Use the live chat in the bottom right corner

Product Specification unless deselected above

Boxed Weight (kg) 1
Brand Castle Group
Application Noise at Work
Noise Features Data Logging, Multi-Language, USB Connectivity
Class Class 1
Weightings A, C, Z
Measurement Parameters Lspl, Leq, Lmax, Peak, Ln, Le
Available Outside the UK? Yes

Download the Detail

Sonik-S Sound Level Meter - Class 1 Data Logging Sound Meter for Occupational Noise


Sonik-S Class 1 and Class 2 Sound Level Meter

  • Easy Operation and Setup
  • 24+ Hours Battery Life
  • On-Going Warranty
  • Fully compliant to IES 61672-1:2013
  • Simultaneous Measurements
  • Multiple Applications

The SONIK-S helps you protect your workforce from over exposure to noise, and helps you ensure your company is complying with The Control of Noise at Work Regulations 2005.

With it’s simple measurement set up and intuitive interface, the SONIK-S makes conducting occupational noise surveys simple and straightforward.

Housed in a modern and attractive body, it has a large colour screen, easy to use interface and is fully compliant with IEC 61672-1:2013 and IEC61252:1993.


Features of the Sonik-S Sound Meter

  • Hearing Protection using the HML method
  • User Modes: Noise at Work, Environmental or All
  • Save results to internal flash memory
  • Download data to a PC via a USB connection
  • Noise Analysis Software included with the meter
  • Small and light weight, fits into small shirt or jacket pocket and also supplied with a strong pocket clip
  • Measure from 25dB up to 140dB
  • Measure Lp, Leq, Lmax, LE, Pa2h, Lep'd, Dose, Dose Per Hour, L10, L90, L(user)
  • Measures parameters simultaneously including LAeq, LCeq and PeakC
  • Under range and Overload indicators
  • User selectable Exchange rate
  • Threshold and Criterion level
  • A, C or Z frequency weighting selection
  • A, C or Z Peak Measurements
  • "Slow, "Fast" and "Impulse" time weighting selection
  • Lockable Key pad through options

SONIK Sound Level Meters by Application

Sound Meters by Application

SONIK-S

SONIK-SE

Occupational Noise Assessments for The Control of Noise at Work Regulations 2005

x

x

Hearing Protection Selection Assessments (via dBData software)

x

x

Simple Noise Level Testing

x

x

Fire Alarm Volume Testing

x

x

Machinery Servicing and Maintenance

x

x

Measurements for the Environmental Noise Regulations 2006 (EU Environmental Noise Directive)



x

Traffic Noise



x

Measurements in accordance with BS 5228



x

Neighbour Noise Nuisance



x

Community Noise Assessments



x

Measurements in accordance with BS 4142:2014



x

Noise Nuisance from Industrial or Commercial Premises



x

Noise Measurements for Planning



x

For applications with noise levels down to 20dB





Sound Power

x

x



SONIK - Sound meters that do exactly what you need them to.

Technical Specification

Instrument Standards:

IEC 61672-1: 2002 Class 1 Group X

IEC 61672-1: 2002 Class 2 Group X

Languages:

English UK, English US, Chinese, French, German, Italian, Portuguese Brazilian, Russian, Spanish, Dutch, Greek

Level Ranges:

Range Name

Linear Range

Peak Range

Low

25 – 100 dB

40 – 103 dB

Medium

45 – 120 dB

60 – 123 dB

High

65 – 140 dB

80 – 143 dB

Quick Setup Modes (SONIK-SE Only):

Noise at Work, Environmental, All Parameters

Frequency Range

1 Hz - 20 kHz (electrical characteristics)

Class 1: 10 Hz - 20 kHz (including microphone)

Class 2: 20Hz - 8kHz (including microphone)

Microphone:

Class 1: ½” Pre-Polarized - Free Field (IEC)

Pressure (ANSI) Sensititvity (25mV/Pa)



Class 2: ½” Pre-Polarized - Free Field (IEC)

Pressure (ANSI) Sensititvity (25mV/Pa)

Measurement Channels: Two

Microphone Preamplifier:

Low Noise, Removable Preamplifier

Parameters:

SONIK-S:

Lp, Leq, Lmax, Lpeak, Exposure Pa2h, Lep'd, %Dose, %Dose Per Hour, Points, Points Per Hour, Under Range, Overload

SONIK-SE:

As SONIK-S, plus LE, L10, L90 and either L1, L5, L50, L95, L99

Noise Floor (Typical):

‘A’ Weighting < 16.0dB

‘C’ Weighting < 17.2dB

‘Z’ Weighting < 18.9dB

Linear Operating range: 75 dB

Display: 2.4” Full Colour TFT 240x320 pixels

Frequency Weighting:

‘A’, ‘C’ and ‘Z’

Combinations of ‘A’, ‘A’&’C’ simultaneous or ‘A’&’Z’ simultaneous available for Lp, Leq and Lmax



Batteries: 4 x AA (1. 5V) - Typically 20 hours continuous use (screen settings dependent)

Time Weighting: ‘Slow’, ’Fast’ and ‘Impulse’

External Power:Micro USB type B, 0.5A

Percentiles (SONIK-SE only):

L10, L90 and either L1, L5, L50, L95, L99

Connections: Micro USB type B

Exchange rate: 3dB, 4dB or 5dB

Environmental:

Temperature Operating Range: -10 to + 50ºC

Humidity: Up to 90% RH Non-Condensing

Criterion Level: 75dB, 80dB, 85dB or 90dB

Case:

High Impact ABS plastic with membrane keypad

Threshold Level: -5dB, -10dB or OFF

Size and Weight

Dimensions:

Including Pre-Amplifier:

260mm (H) x 67mm (W) x 26mm (D)

Excluding Pre-Amplifier:

184mm (H) x 67mm (W) x 26mm (D)

Memory: 4MB – Up to 4000 Data Intervals Maximum in one or multiple recordings

Weight:

207g (Without Batteries

What's in the Box

  • GA142S - SONIK-S Sound Level Meter (Class 1 or Class 2 depending on selection above)
  • KG205 - Sound Meter Windshield
  • Free dBDataLITE Software
  • Free TheCastleCloud Software

Software

SONIK Sound Meters work with Secure Cloud or PC Based Software

You can analyse your data using either Cloud or PC Based software that's free and simple to use.

Cloud Software - TheCastleCloud.com

The SONIK sound level meters can be used with TheCastleCloud.com, a secure Cloud based noise analysis software that can be accessed from any device with a browser and an internet connection. Your data is secure and easily manageable, and has full noise analysis features.

  • Start Account Completely Free
  • Powerful Database System
  • Numerous Calculators
  • Customised Reporting
  • PRO Accounts available for increased storage and features

PC Software - dBdataLite

Having instant access to all of your data on one screen means better decision making and streamlined operation. With all the data on-screen, dBdata allows you to manage the data files, copy out the data you want and print reports directly to hard copy.

For increased functionality, there is the option to upgrade to the full dBdataPRO software, which gives the benefit of greater data-manipulation, graphical views and analysis for hearing protection, dose calculations and NR curves.

Model Comparison

dBAirSonikSonus

Sound Meter Range >>

dBAir Sonik Sonus

Description >>

Top of the range sound level meters with extensive features, including WiFi Data Transfer and optional octave band analysis. Dedicated sound meters for Occupational and Environmental Noise assessments with very easy operation and impressive battery life. Proven and fully compliant sound level meters at an impressively low price.

Models >>

Click to visit the product page

GA141S GA141E GA141SE
GA142S GA142E GA142SE
GA116L GA116E GA116I
Safety Environmental Integrating
SAFETY ENV. SAFETY & ENV.
SAFETY ENV. SAFETY & ENV.
SAFETY ENV. INT.
Features
Voice Memo Recording


Audio Events Recording



1/1 Octave Bands


1/3 Octave Bands



Overload
Data Logging

Advanced Data Logging


USB Connectivity

WiFi Data Transfer


PC Software – Castle dBData


Cloud Software
castlecloud.com

Colour Screen

Download data as .CSV


Multi-Language

Parameters
LP (SQL)
LEQ
LMIN

LMAX
APEAK

CPEAK
ZPEAK

(Percentiles) LN



LTM3



LTM5



Noise Exposure Pa2h



% DOSE



HSE Exposure Points



LEPD (LEX)



LAVG


TWA


LE (SEL)


LDAY



LEVENING



LNIGHT



LDN



LDEN



NA (Level exceedance count)



Specifications
Battery Type
4 x AA (1.5v) 4 x AA (1.5v) 4 x AA (1.5v)
4 x AA (1.5v) 4 x AA (1.5v) 4 x AA (1.5v)
1 x PP3 (9v) 1 x PP3 (9v) 1 x PP3 (9v)
Battery Life *
8+ hrs 8+ hrs 8+ hrs
24+ hrs 24+ hrs 24+ hrs
8+ hrs 8+ hrs 8+ hrs
A weighting Noise Floor
16.0dB 16.0dB 16.0dB
16.0dB 8.0dB 16.0dB
18.6dB 12.0dB 32.0dB
C weighting Noise Floor
15.0dB 15.0dB 15.0dB
17.2dB 9.4dB 17.2dB
18.2dB 12.0dB 38.0dB
Z weighting Noise Floor
25.0dB 25.0dB 25.0dB
18.9dB 11.8dB 18.9dB
20.6dB 14.5dB N/AdB
Class
1 or 2 1 1 or 2
1 or 2 1 1 or 2
1 or 2 1 1 or 2
Time History
Advanced Advanced Advanced
Basic Basic Basic
Basic Basic N/A
No. of Ranges
2 2 2
3 3 3
3 3 3
Total Linear Range
25 - 140 20 - 130 25 - 140
25 - 140 20 - 130 25 - 140
32 - 140 22 - 130 41 - 140
Frequency Weighting (A, C, Z)
A, C, Z A, C, Z A, C, Z
A, C, Z A, C, Z A, C, Z
A, C, Z A, C, Z A, C
Time Weighting (Fast, Slow, Impulse)
F, S, I F, S, I F, S, I
F, S, I F, S, I F, S, I
F, S, I F, S, I F, S
Memory Size
32GB+ 32GB+ 32GB+
4MB 4MB 4MB
4MB 4MB N/A+

  *Screen settings dependant Comparison chart R1
