Castle Group

dBCal - Triple Level Acoustic Calibrator

SKU: 01GA612

Be the first to review this product

£275.00

The Castle dBCal Calibrators provide 3 output levels to ensure acoustic ‘field’ calibration of any sound level meter is accurate both before and after measurements. With an excellent ‘line-of-sight’ surface the controls and display make use as easy and simple as possible.

* Required Fields

£275.00
dBCal - Triple Level Acoustic Calibrator
dBCal - Triple Level Acoustic Calibrator dBCal - Triple Level Acoustic Calibrator dBCal - Triple Level Acoustic Calibrator dBCal - Triple Level Acoustic Calibrator dBCal - Triple Level Acoustic Calibrator dBCal - Triple Level Acoustic Calibrator

Have a question about this product? /
Would you like a quote?

- Email us on sales@castleshop.co.uk
- Call us on 01723 584250
- Use the live chat in the bottom right corner

Product Specification unless deselected above

Brand Castle Group
Available Outside the UK? Yes

Most Measurement codes of practice and legislative guides demand that an acoustic ‘field’ calibration of any sound level meter should be made before a series of measurements and that the accuracy is checked afterwards. The Castle dBCal Calibrators provide just that with 3 output levels, long battery-life and highly ergonomic design. Considerable care has gone into making sure that this is the only sound calibrator has its controls and displays on the same ‘line-of-sight’ surface as the sound meter.

Features

Available as Class 1 or Class 2
3 output levels, 94db, 104db & 114db, each at 1KHz
This allows greater options for testing sound meters

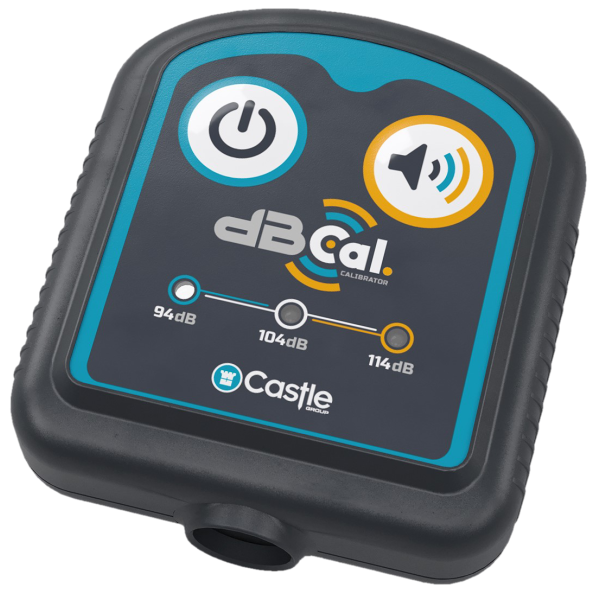

‘Line-of-Sight’ Eegonomics
All controls & displays on the same surface as sound meter
Simple operation — Turn on and go!
Ultra-low distortion & stability
MEMS microphone feedback
For atmospheric pressure compensation
Compliant with 2018 standard
User-upgradable software for future-proofing

Technical Specification

GA611 - Class 1GA612 - Class 2
Tolerance ± 0.25dB ± 0.4dB
Harmonic Distortion < 1.6% < 3%
Temperature range -10°C to 50°C 0°C to 40°C
Relative Humidity 25% to 90% 25% to 90%
Atmospheric Pressure Range 65 kPa to 108 kPa 65 kPa to 108 kPa
Nominal Conditions 101.3kPa (760mm Hg), 23°C & 50%RH
Batteries 2 x 1.5V AA Alkaline
Battery Life approx. 70 hours continuous
Auto Power-off 1 minute (unless ‘wireless’calibration started)
Cavity diameter ½” microphone standard
Output Levels (rel. to 20μPa) 94dB, 104dB & 114dB
Standards IEC 60942:2017, BS EN IEC 60942:2018, ANSI S1.40 2006
