Castle GA2006S Vexo Single Axis Machinery Vibration Meter

01GA2006S

Be the first to review this product

£895.00

Quick Overview

The Vexo S Single Axis Vibration Meter is the ideal solution in a simple and easy to use meter for machine condition monitoring and fault diagnostics. Identify and prioritize mechanical problems with the Vexo S, hand held vibration tester.

* Required Fields

£895.00

Did you know you can also:

Have a question about this product? /
Would you like a quote?

- Email us on sales@castleshop.co.uk
- Call us on 01723 584250
- Use the live chat in the bottom right corner

Product Specification unless deselected above

Brand Castle Group
Measurement Condition Monitoring
Available Outside the UK? Yes

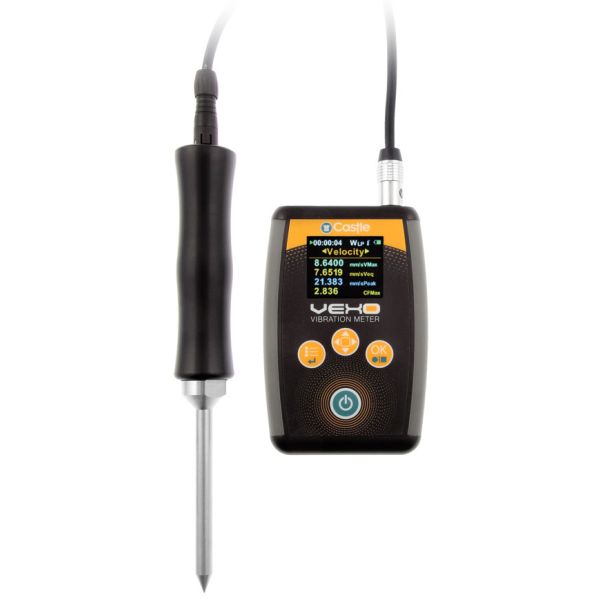

Castle GA2006S Vexo Single Axis Machinery Vibration Meter

The Vexo S Single Axis Vibration Meter is designed to make quick and accurate vibration level readings in machine monitoring and bearing vibration ensuring your machinery continues to run smoothly and removes the risk of expensive repairs and extensive downtime.

Dedicated to monitoring vibration levels accurately and precisely in industrial machinery such as bearing housings, rotating machinery or any other source of mechanical vibration, the Vexo S is perfectly suited to monitoring machine conditions and faults.

Designed to be simple to use and easy to operate, the Vexo S has 3 operational buttons with virtually no set-up meaning you can simply turn it on press Record and start measuring. With a large colour display it's also easy to take instant readings.

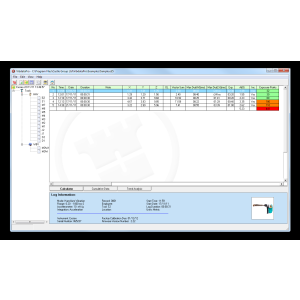

Alternatively, readings can be stored in the Vexo S for later download to VibdataPro Vibration Software for further analysis and data can also be used for trending analysis so you know when machinery is starting to fail.

The Vexo S is supplied with a rechargeable battery pack and charger ensuring your vibration meter is ready and waiting whenever you need it.



Features:

  • Single Axis mode for simple setup
  • Large colour display
  • Large 'Flash' memory
  • Re-chargeable battery pack and charger
  • Only 3 operational buttons for simple use
  • Built tough with rugged accelerometer and cable



Applications:

  • Machinery condition to ISO 10816-1, 3 & 7
  • Bearing condition indication
  • Trending analysis (with optional VibdataPro)
  • Environmental Vibration



Have A Look At Our HAV's In A Day Vibration Training Course

Technical Specification

Instrument Standards BS ISO 10816-1 : 1995 + A1 : 2009
BS ISO 10816-3 : 2009
BS ISO 10816-7 : 2009
Range (Integration = Acceleration) Low: 0.005 - 20.0m/s-2 / 0.00051 - 2.04g
High: 0.05 - 200.0m/s-2 / 0.0051 - 20.4g
Range (Integration = Velocity Low: 0.06 - 250mm/s
High: 0.6 - 2500mm/s
Range (Integration = Displacement) Low: 4.0 - 16500um/s
High: 40.0 - 165000um/s
Measurement Channels One
Parameters Acceleration: Arms, Aeq, Amax, Peak, Crest Factor
Velocity: Vrms, Veq, Vmax, Peak, Crest Factor
Displacement: Drms, Deq, Dmax, Peak to Peak, Crest Factor
Alarms Machine, Pump, Bearing
Linear Operating Range 72dB
Frequency Weighting WFL - 2Hz to 8kHz
WLP - 2Hz to 1kHz
WHP - 1kHz to 8kHz
Memory Flash memory storing up to 992 recordings
Transducer Castle KD1011, 100mV/g
Noise Floor <0.002 m/s-2 - Low Range
<0.020 m/s-2 - High Range
Display Full Colour Graphic OLED Display (160 x 128)
Batteries NiMH re-chargeable cell pack
Typically 10 hours continuous use
Connections Input: 3.5mm Stereo Jack Socket
Download: USB Micro B (Cable Supplied)
Recharge: DC Socket (Charger & Cable Supplied)
Temperature Operating Range -10 to + 50ºC
Humidity Up to 90% RH Non Condensing
Electromagnetic Compatibility Designed in accordance with the following Electromagnetic Compatibility Directives:
SI 2005/281
2004/108/EC
Case High Impact ABS plastic with tactile membrane keypad

What's in the Box

This Kit Includes:
  • GA2006S Vexo Single Axis Vibration Meter
  • Vexo Carry Case
  • KD1206 Spike Probe
  • KD1011 Accelerometer
  • ZL1097-01 Accelerometer Cable
  • PC009 Vib Data Lite (or Vib Data Pro if selected)
  • Vexo S Charger
