Castle Group

Personal Data Logging Noise Dosemeter System

SKU: 05NK004

Be the first to review this product

£1,431.00

Measure personal noise levels with the Logging Dosemeter System. Kits consist of either 1 or 5 logging dosemeters with calibrator and case. Ideal for checking worker's exposure to noise, downloading data to a PC and storing the results for future evaluation.

* Required Fields

£1,431.00
Personal Logging Dosemeter System
NK004B Single Logging Dosemeter System Personal Logging Dosemeter System Personal Noise Dosemeter

Have a question about this product? /
Would you like a quote?

- Email us on sales@castleshop.co.uk
- Call us on 01723 584250
- Use the live chat in the bottom right corner

Product Specification unless deselected above

Brand Castle Group
Application Noise at Work
Noise Features Data Logging
Measurement Parameters Dose, Lepd
Available Outside the UK? Yes

Personal Logging Dosemeter System

The leading logging industrial dosimetry package for Health and Safety officers, occupational hygienists and managers.

  • The ideal group noise dosimetry system
  • Simple to use instruments
  • Fully logging dosemeters with analysis software
  • Full exposure calculations and predictive results

This system comprises either one or five industrial noise dosemeters for measuring Dose %, Projected Dose, Daily Exposure (Lepd) and True Peak in a single package. Ideal for large numbers of staff, making it easier and more cost-effective to initiate a wide ranging dosimetry programme. The GA257L logging dosemeter offers a full day's exposure data which can be downloaded to the dBdataPro noise software for further evaluation and storage.



Kit available in two variations with either a single dosemeter or a set of 5 dosemeters:

NK004 Multiple Logging Dosemeter System

  • GA257L Personal Sound Exposure Meters (x5)
  • GA601 Single Level Calibrator
  • PC007 dBdataPro Noise Analysis Software and Cable
  • KA007 5 Meter Kit Case

NK004B Single Logging Dosemeter System

  • GA257L Personal Sound Exposure Meters (x1)
  • GA601 Single Level Calibrator
  • PC007 dBdataPro Noise Analysis Software and Cable
  • KA010 Small Attaché Kit Case

Technical Specification

Standards IEC61252-1993 (Personal Sound Exposure Meters)
Linear Operating Range 70dB
Detector Characteristics RMS and Peak
Exchange Rate 3dB
4dB
5 dB
Criterion Level 75dB
80dB
85dB
90dB
Threshold Level -5dB
-10dB
OFF
Peak 3dB above top of selected range
Display Custom alphanumeric LCD, digit size 7mm x 5mm
Memory 2100 Data Intervals Maximum
Calibration 91.0 to 120.0dB @ 1KHz
Batteries 1 x PP3 (9V) Approximately 12 hours continuous use
Operating Temperature -10 to + 50ºC
Humidity Effect < 0.5dB from 25% to 90% RH
Vibration No Effect on Instrument
Processing A to D Converter: 12-bit, 325kHz sampling. 8MHz, micro-controller
Dimensions 60mm (width) x 35mm (depth excluding pocket clip) x 135mm (height)
Microphone Cable Length 800mm (including rubber sleeve and microphone)
Weight 220g (including battery)
EMC:
  • Emissions: EC 61000-6-3, EN61326-1:2006, CISPR 22:1997 EN55022:1998, FCC Rules, Part 15 2003 Class B
  • Immunity: IEC 61000-6-2:2005, EN61326-1:2005 Levels ±4kV (Contact), ±8kV (Air)
  • Amp Mod: IEC 61000-6-2:2005, Level 10V/m

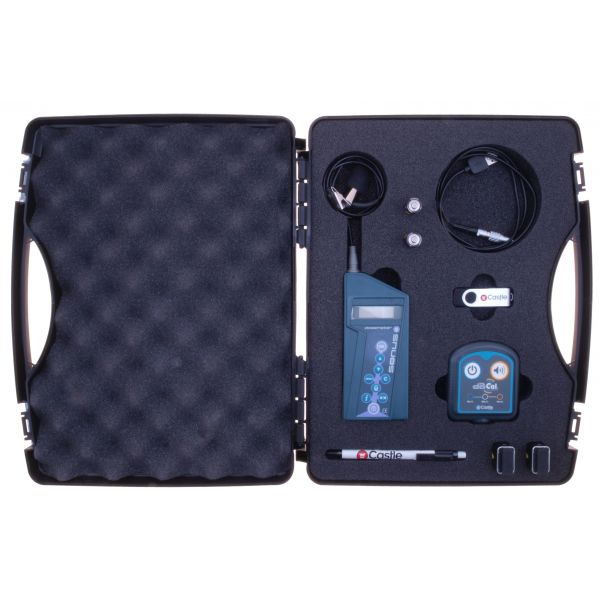

What's in the Box

Kit available in two variations with either a single dosemeter or a set of 5 dosemeters:

NK004 Multiple Logging Dosemeter System

  • GA257L Personal Sound Exposure Meters (x5)
  • GA601 Single Level Calibrator
  • PC007 dBdataPro Noise Analysis Software and Cable
  • KA007 5 Meter Kit Case

NK004B Single Logging Dosemeter System

  • GA257L Personal Sound Exposure Meters (x1)
  • GA601 Single Level Calibrator
  • PC007 dBdataPro Noise Analysis Software and Cable
  • KA010 Small Attaché Kit Case
