SV103 Vibration Dosemeter

Add to Wish List Email to a Friend

The first ever made vibration dosemeter for hand arm monitoring. This small dosemeter is perfect to take long samples of daily exposure to vibration because of it's small size it means that it will not get in the way of the worker, which allows them to complete daily tasks and get a more accurate reading.

Add to Compare

Product Specification unless deselected above

More Information
Measurement Hand Arm Vibration
Brand Svantek
Boxed Weight (kg) 1
Available Outside the UK? No

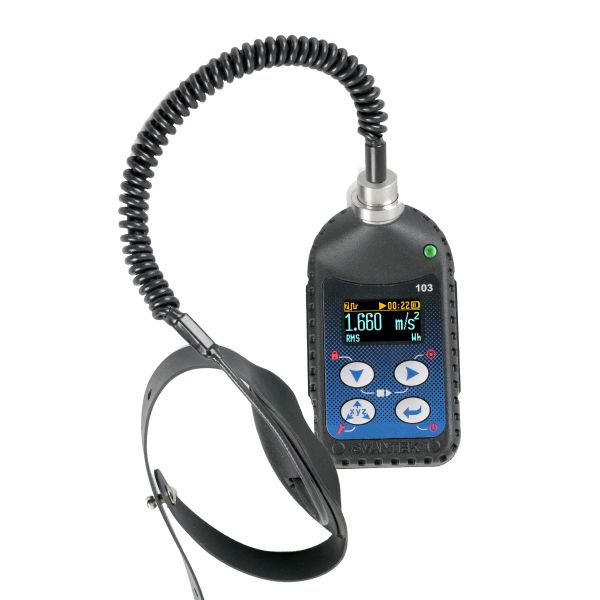

SV103 Vibration Dosemeter

This is the first ever personal hand-arm vibration exposure meter. It has been intricately designed with the user in mind and has a large 8gb memory so it can store large sources of information with the firmware that available with the piece of kit. The instrument meets ISO 8041:2005 standard and is an ideal choice for the measurements according to the European Directive 2002/44/EC.

The SV 103 is typically attached to the user’s arm and is small enough not to interfere with working activities. It works with “Supervisor” software which allows instrument configuration, measurement results viewing and exporting as well as daily vibration exposure recalculation. There is an OLED screen which displays information in both text and graphical form and offers excellent visibility even in full daylight. Advantages like shock resistance, no DC offset effect, very low power and frequency response down to DC are given through the new technology of a MEMS accelerometer. It is powered using rechargeable batteries or through the USB interface which also enables easy connection between the SV 103 and a PC.


  • Personal Daily Vibration Exposure Meter complying to ISO 8041
  • Measurement under gloves according to ISO 10819
  • Triaxial MEMS accelerometer
  • 1/1 or 1/3 octave real-time analysis
  • Contact force measurement
  • Time-domain signal recording
  • Large 8GB memory
  • USB 2.0 interface
  • OLED color display with super brightness and contrast
  • Operational time > 24 hours
  • Easy in use predefined setups
  • Extremely compact, light weight and robust case
Standards ISO 8041:2005, ISO 5349-1:2001; ISO 5349-2
Meter Mode RMS, Max, Peak, Peak-Peak, Vector, A(8), Dose, ELV, EAV
Simultaneous measurement in three channels
Filters Wh (ISO 5349) and coresponding Band Limiting filter
RMS and RMQ Detectors Digital true RMS & RMQ detectors with Peak detection, resolution 0.1 dB
Measurement Range 0.2 ms-2 RMS ÷ 2000 ms-2 PEAK
Frequency Range 1 Hz ÷ 2000 Hz
Data Logger Time-history data including meter mode results and spectra
Time Domain Recording Simultaneous 3-channel time-domain signal recording (option)
Analyser 1/1 octave real-time analysis (option)
1/3 octave real-time analysis (option)
Accelerometer SV 107 integrated triaxial accelerometer including hand straps

What's in the Box

  • SV103 Hand Arm Vibration Dosimeter
  • SV 107 Hand-Arm triaxial accelerometer,  SC 156 USB cable, built-in rechargeable batteries,
  • SA 54 charger/power supply, SA 150, SA 151, SA 152 set of adapters, SA 103 dosimeter armband,
  • SA 107 cable fixing band, CD with instruction, transport box

Downloads and Datasheets


SV 103 Datasheet
