Svantek Vibration Calibrator

SKU: 01SV111

Be the first to review this product

£3,225.00
The state of the art vibration calibrator for human vibration systems with a design based on the triaxial reference accelerometer and microprocessor controlled shaker.

£3,225.00

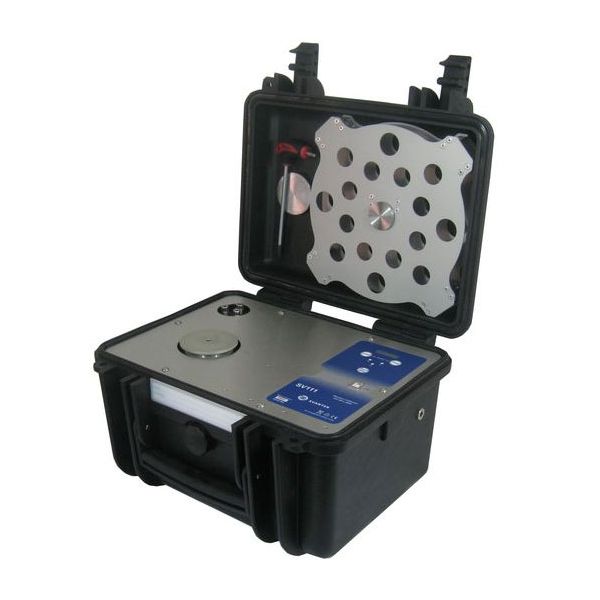

Vibration Calibrator
Vibration Calibrator Vibration Calibrator with seat pad accelerometer Vibration Calibrator with seat pad accelerometer Vibration Calibrator

Have a question about this product? /
Would you like a quote?

- Email us on sales@castleshop.co.uk
- Call us on 01723 584250
- Use the live chat in the bottom right corner

Product Specification unless deselected above

Brand Svantek
Available Outside the UK? No

Svantek Vibration Calibrator

The Castle SV111 Vibration Calibrator is a state of the art vibration calibration system with a microprocessor controlled shaker and reference tri-axial accelerometer.

The vibration calibrator provides excellent stability of calibration levels and their frequency despite the weight (up to 1kg) of the accelerometer used to calibrate the vibration meter.

The vibration level is selectable and calibration can be performed on 3 frequencies (16Hz, 80Hz and 160Hz).

The vibration calibrator is housed in a weatherproof case and comes with a rechargeable battery for up to 20 hours of operation.

Features:

  • Accurate calibration system ensures vibration meters meet international standards
  • Ease of use for all types of vibration transducers for measuring acceleration, velocity and displacement
  • Complete seat accelerometer calibration
  • Loading capacity of 1kg
  • Internal calibration and fault detection
  • Multi-frequency quartz controlled selectable vibration level
  • Tri-axial reference transducer
  • Displays magnitude, frequency and any errors
  • Automatic power off to save battery life
  • Robust case and design for use outside



Please Note - This product is available in the UK only

Technical Specification

Frequency 15.92 79.58 159.2 636.6 Hz
Vibration accelerations (rms) 1 1; 2; 3; 4; 5; 6; 7; 8; 9; 10 1; 2; 3; 4; 5; 6; 7; 8; 9; 10 1 m/s2
Vibration velocities (rms) 10 2, 4, 6, 8 10, 12, 14, 16, 18 20 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 0.25 mm/s
Vibration displacement (rms) 100 4, 8, 12, 16, 20, 24, 28, 32, 36, 40 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 0.0625 µm
Amplitude error Less than ± 3%
Frequency error Less than ± 0,05%
Transverse vibration Less than 10% of the main direction
Harmonic distortion <5 <3 <3 <3 %
Maximum weight of calibrated object 1000 300 200 200 grams
Sensor mounting Thread M5 x 12 mm;
Mounting adapters SA 111 Seat accelerometer adapter for  SV 38, SV 38V, SV 100 (included)
SA 105 Adapter for SV 105 (option)
SA 38 Adapter for SV 101 (option)
SA 40 Adapter for SV 207A, Dytran 3233A, SV 39A, Dytran 3143M1 (option)
SA 44 Adapter for SV 50, Dytran 3023M2 (option)
Levelling off time Typically 15 ÷ 20 seconds, 60 seconds max
Temperature range -10°C ÷ 50°C
Humidity range 25% ÷ 85%
Battery type Rechargeable 6V/12Ah
Continuous operating time Up to 20 hours
Automatic switch off From 5 to 60 minutes adjustable
Charging time Less than 10hours
Power supply for charger 15 W; 8÷24 V
Weight 6,5 kg (incl. battery)
Dimensions 395 x 270 x 194 mm

Downloads and Datasheets

Software

About SvanPC++

This piece of advanced software supports Svantek measuring instruments. Each Svantek device is is easy to use and a complete measuring systems because of the functionalities and extended capabilities in this advanced application. The software has been divided for several specialised modules by distinguishing application fields in order to give users the perfectly customised, powerful and sophisticated tool. The functions provided by the main module include measurement data downloading from instruments to PC, measurement setups creating, basic Leq/RMS recalculation, measurement results in text, tabular and graphical format, export data to spread sheets or text editor applications.

Features include:

  • Being able to easily download data of measurements to a PC
  • Total Leq/ RMS recalculation
  • Quick reporting tool
  • A variety of presentation results including text, table and graphical format
  • Advanced customisation of each view
  • Creation of measurement setups
  • Merging of measurement files.
