SKU
060560-8651

TESTO 865s - Thermal Imaging Camera (160x120 pixels)

Testo
Add to Wish List Email to a Friend

The thermal imager testo 865s is the ideal entry into the world of thermography. It impresses with the best image quality in its class and intuitive operation in a modern tile look. The testo 865s fits comfortably in the hand and is robust enough to withstand the rigours of everyday use. Helpful functions such as IFOV-Warner and ScaleAssist ensure even better thermal images. All that combined with an unbeatable price-performance ratio. Switch on point, know more.

US$996.84
Add to Compare

Product Specification unless deselected above

More Information
Boxed Weight (kg) 0.800
Brand Testo
Available Outside the UK? Yes

Product Description

The testo 865s thermal imager offers professional technology and concentrates on functions which are needed in a contractor's daily work. The testo 865s is a user-friendly thermal imager, optimized for fast and efficient work. With the testo ScaleAssist functions ensuring optimum setting of the thermal image scale for building thermography and the IFOV warner making sure you avoid measurement errors, you will always generate the perfect infrared image.


Areas of application of the testo 865s thermal imager

Detect leaks, identify overheated connections, pinpoint thermal bridges or detect structural defects. The testo 865s thermal imager is ideal for applications in daily maintenance and installation work in trade and industry. It enables time-saving quality assurance and ensures reliable production control.


Technical highlights of the testo 865s thermal imager

The testo 865s thermal imager stands out thanks to its easy operation and has the following impressive technical features:

  • Very good image quality due to high resolution: 19,200 temperature measuring points ensure precise thermography. Infrared resolution of 160 x 120 pixels – via integrated SuperResolution Technology 320 x 240 pixels
  • Visualize temperature differences from 0.1°C
  • Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
  • The IFOV warner means the distance from the measurement object / measurement spot size is determined and the measurement spot is shown on the thermal image – you therefore avoid measurement errors because the camera shows you exactly what you can measure
  • The testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, for example of the thermal insulation behaviour of buildings
  • Pro software for image evaluation on the PC
  • You can choose to save thermal images as JPEGs

Technical Data

Standards

EU-/EG-guidelines

EMC: 2014/30/EU

Infrared image output

Field of view

31° x 23°

Focus

Fixed focus

Minimum focus distance

<0.5 m

Geometric resolution (IFOV)

3.4 mrad

Image refresh rate

9 Hz

Infrared resolution

160 x 120 pixels

SuperResolution (IFOV)

2.1 mrad

SuperResolution (Pixel)

320 x 240 pixels

Thermal sensitivity

<0.1 °C (100 mK)

Spectral range

7.5 to 14 µm

Image presentation

Colours

4 (iron, rainbow, cold-hot, grey)

Display option

IR image only

Display type

8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)

Measurement

Accuracy

±2 °C, ±2 % of mv

Emissivity

0.01 to 1

Measuring range

-20 to +280 °C

Reflected temperature

manual

Measuring function

Analysis function

Mean point measurement, hot/cold-spot recognition, Delta T

IFOV warner

Included

testo ScaleAssist

Included

Imager equipment

Video streaming

via USB

Standard lens

31° x 23°

JPEG storage

Included

Full screen mode

Included

Interface

USB 2.0 Micro B

Imager storage

File format image

.bmt; .jpg; export option in .bmp; .jpg; .png; .xls; .csv

Storage device

Internal Memory (2.8 GB)

Power supply

Battery type

Fast-charging, Li-ion battery can be changed on-site

Mains operation

yes

Operating time

4.0 h

Ambient Condition

Air humidity

20 to 80 %RH non-condensing

Housing protection class

IP54

Vibration

2G

Storage temperature

-30 to +60 °C

Operating temperature

-15 to +50 °C

Physical specification

Product-/housing material

PC - ABS

Weight

510 g

Dimensions

219 x 96 x 95 mm

PC software

System requirements

Windows® 10; Windows® 8.1

General technical data

Product colour

Black

Display ligthing

bright / normal / dark

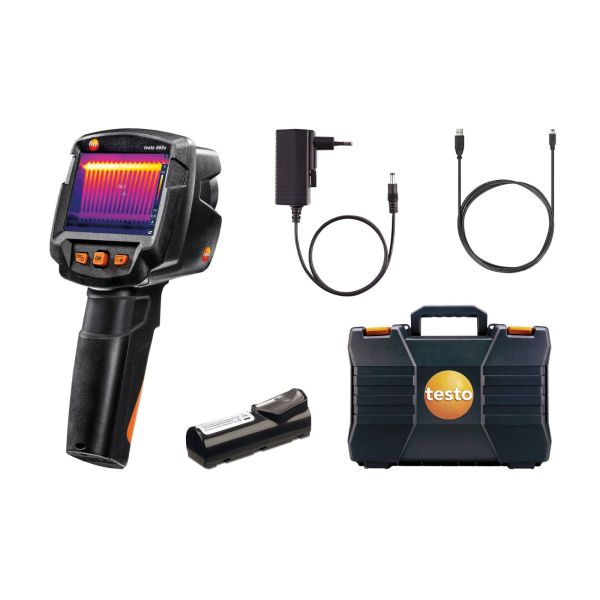

What's in the Box

Testo 865 Thermal imaging camera (160 x 120 pixels)

USB cable

mains unit

Lithium -ion rechargeable battery

IRSoft professional software

instructions

case
