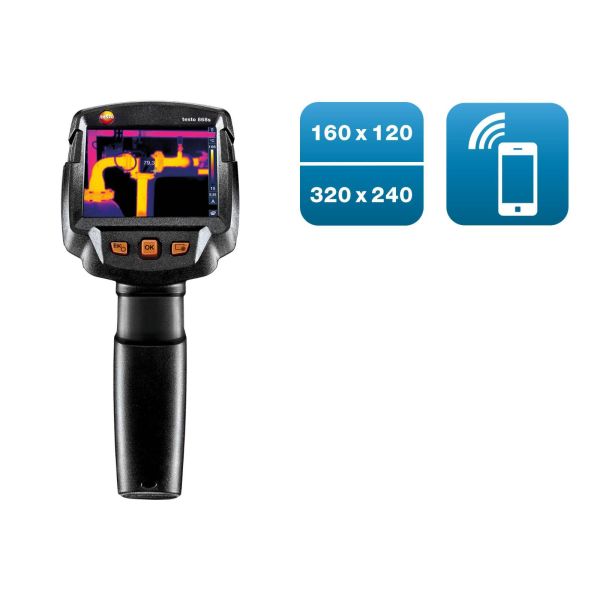

TESTO 868s - Thermal Imaging Camera (160x120 pixels)

Testo
Add to Wish List Email to a Friend

Thermography connected - with the testo 868s thermal imager. It has the best thermal image quality in its class, an integrated digital camera and stands out thanks to smart new features with intuitive operation in a modern tile appearance. The testo Thermography App turns your smartphone or tablet into a second display. In addition to this, you can operate the imager with the App as well as creating and sending reports on site.

US$1,595.75
Add to Compare

Product Specification unless deselected above

More Information
Brand Testo
Boxed Weight (kg) 0.800
Available Outside the UK? Yes

Product Description

With the testo 868s thermal imager, we have developed a thermal imager which makes work quicker and easier – without foregoing professional thermal imaging technology. You can generate error-free and objectively comparable infrared images using its handy functions. The IFOV warner, testo ɛ-Assist and testo ScaleAssist mean you can avoid measurement errors and not only effortlessly achieve optimum setting of emissivity (ɛ) and reflected temperature (RTC) for building thermography, but also of colour scale.


The testo 868s thermal imager– smart and networked

The testo 868s thermal imager guarantees wireless communication with your mobile terminal device via WLAN. With the testo Thermography App for iOS and Android you can write and send reports directly on site, as well as saving them online, and you can use your smartphone or tablet as a second display or for remote control.


Areas of application of the testo 868s thermal imager

Detect leaks, identify overheated connections, pinpoint thermal bridges or detect structural defects. The testo 868s thermal imager was developed for applications in daily maintenance and installation work in trade and industry. It enables quick and reliable work when you are detecting defects and carrying out maintenance.


Technical highlights of the testo 868s thermal imager

Really simple operation with impressive thermal imaging technology: the testo 868s thermal imager has the following impressive features:

  • Very good image quality due to high resolution: 19,200 temperature measuring points for precise thermography. Infrared resolution of 160 x 120 pixels – extended to 320 x 240 pixels via integrated SuperResolution Technology
  • Visualizing temperature differences of 0.08 °C
  • The testo Thermography App enables you to write reports on site, save them online and send them by e-mail, as well as allowing you to use mobile terminal devices as a second display or for remote control
  • Built-in digital camera generates a real image in parallel to the thermal image
  • Automatic hot-cold spot recognition directly displays critical temperature conditions
  • The testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, for example of the thermal insulation behaviour of buildings
  • The IFOV warner means the distance from the measurement object / measurement spot size is determined and the measurement spot is shown on the thermal image – you therefore avoid measurement errors because the camera shows you exactly what you can measure
  • Pro software for image evaluation on the PC
  • You can choose to save thermal images as JPEGs

Technical Data

Standards

EU-/EG-guidelines

EMC: 2014/30/EU; RED: 2014/53/EU

Infrared image output

Field of view

31° x 23°

Focus

Fixed focus

Minimum focus distance

<0.5 m

Geometric resolution (IFOV)

3.4 mrad

Image refresh rate

9 Hz

Infrared resolution

160 x 120 pixels

SuperResolution (IFOV)

2.1 mrad

SuperResolution (Pixel)

320 x 240 pixels

Thermal sensitivity

<0.08 °C (80 mK)

Spectral range

7.5 to 14 µm

Image output visual

Minimum focus distance

min. 0.5 m

Image size

5 MP

Image presentation

Colours

4 (iron, rainbow, cold-hot, grey)

Display option

IR image / real image

Display type

8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)

Measurement

Accuracy

±2 °C, ±2 % of mv

Emissivity

0.01 to 1

Measuring range

-30 to +100° C; 0 to +650° C

Reflected temperature

manual

testo ε-Assist

Included

Measuring function

Analysis function

Mean point measurement, hot/cold-spot recognition, Delta T

IFOV warner

Included

testo ScaleAssist

Included

Imager equipment

Video streaming

via wireless LAN with testo Thermography App

Standard lens

31° x 23°

JPEG storage

Included

Full screen mode

Included

Digital camera

Included

Interface

USB 2.0 Micro B

WLAN Connectivity

Communication with the testo Thermography App wireless module WLAN (EU, EFTA, USA, AUS, CDN, TR)

Imager storage

File format image

.bmt; export option in .bmp; .png; .csv; .xls; .jpg

Storage device

Internal Memory (2.8 GB)

Power supply

Battery type

Fast-charging, Li-ion battery can be changed on-site

Mains operation

yes

Operating time

4.0 h

Ambient Condition

Air humidity

20 to 80 %RH non-condensing

Housing protection class

IP54

Vibration

2G

Storage temperature

-30 to +60 °C

Operating temperature

-15 to +50 °C

Physical specification

Product-/housing material

PC - ABS

Weight

510 g

Dimensions

219 x 96 x 95 mm

PC software

System requirements

Windows® 10; Windows® 8.1

General technical data

Product colour

Black

Display ligthing

bright / normal / dark

What's in the Box

Testo 868s Thermal imaging camera radio module for WLAN

USB cable

mains unit

Lithium -ion rechargeable battery

IRSoft professional software

instructions

case
