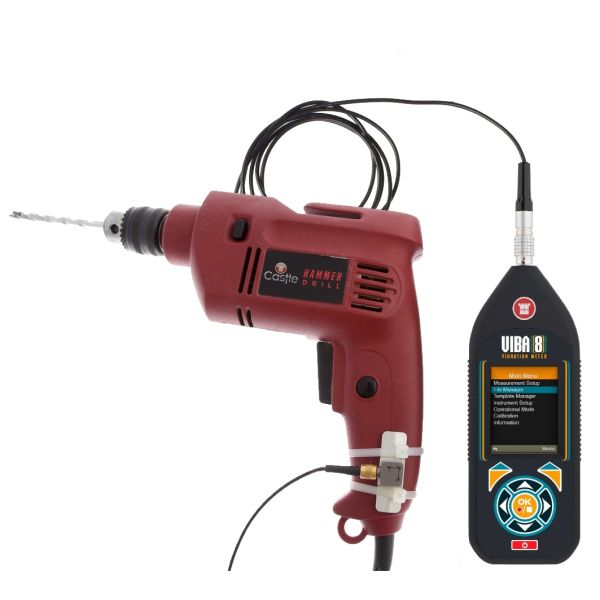

VibA(8) Hand-Arm Vibration System

SKU: VK040

Be the first to review this product

£2,956.00
Ultra-simple and dedicated to compliance of the Vibration at Work Regulations 2005, this is the perfect option for your Hand-Arm Vibration measurements with the added benefit of being able to add a Whole-Body Seat Pad at any time further down the line.
£2,956.00

Did you know you can also:

VibA(8) Hand-Arm Vibration System
VibA(8) Hand Arm & Whole-Body Vibration Meter VibA(8) Hand Arm & Whole-Body Vibration Meter VibA(8) Hand-Arm Vibration System VibA(8) Hand-Arm Vibration System VibA(8) Hand-Arm Vibration System

Have a question about this product? /
Would you like a quote?

- Email us on sales@castleshop.co.uk
- Call us on 01723 584250
- Use the live chat in the bottom right corner

Product Specification unless deselected above

Brand Castle Group
Available Outside the UK? Yes

The all NEW VibA(8) from Castle Group Ltd takes Hand Arm & Whole Body Vibration measurement to a whole new level! Ultra-simple to use and dedicated to compliance with the Control of Vibration at Work Regulations 2005, the VibA(8) delivers the ultimate practical solution to quantifying the vibration level of tools on your site.

Why would you buy anything else!

  • Ultra-simple to use
  • Choice of Sensors for Your Application (with Auto Detection)
  • Dedicated Hand Arm & Whole-Body Vibration Measurement
  • Add sensors at any time
  • Fully compliant with BS8041 and the Control of Vibration at Work Regulations 2005
  • Clear Results in m/s2, Points and Maximum Exposure Allowed
  • Large Memory and Software for Data Analysis

Technical Specification

Instrument Standards:

ISO 8041: 2017 Human Response to Vibration

For compliance with:

ISO 5349: 2001 Measurement and evaluation of human exposure to hand-transmitted vibration

ISO 2631:2018 Mechanical vibration and shock -- Evaluation of human exposure to whole-body vibration

Level Ranges: HAV 1mv/g (Standard)



m/s2

g

ft/s2

Low

0.20 – 2000

0.02 – 200

0.656 – 6560

High

1.00 – 10000

0.1 – 1000

3.28 – 32800

Level Ranges: HAV 10mv/g (Premium)



m/s2

g

ft/s2

Low

0.10 – 1000

0.01 – 100

0.328 – 3280

High

0.50 – 5000

0.05 – 500

1.64 – 16400

Level Ranges: HAV 4mv/g (MEMS)



m/s2

g

ft/s2

Low

0.20 – 2000

0.02 – 200

0.656 – 6560

High

1.00 – 10000

0.1 – 1000

3.28 – 32800

Level Ranges: WBV 100mv/g (Standard)



m/s2

g

ft/s2

Low

0.01 – 100

0.001 – 10

0.0328 – 328

High

0.050 – 500

0.005 – 50

0.164 – 1640

Level Ranges: WBV 1000mv/g (Premium)



m/s2

g

ft/s2

Single Range

0.01 – 35

0.001 – 3.5

0.0328 – 115



Measurement Channels:

Three: Simultaneous X, Y, Z

Parameters:

Acceleration: Arms, Aeq, Amax, Peak, Vector Sum, Dominant Axis, HSE Exposure Points, VDV, EAV and ELV

Linear Operating range:

80 dB

Frequency Weighting:

Wh - Hand Arm Filter

Wd & Wk - Whole Body Vibration

Memory:

Flash memory storing over 2000 recordings

Transducers:

Standard HAV Sensor (AT/14)

Premium HAV Sensor (3053B2)

Standard Whole Body MEMS Seatpad

Premium Seatpad (5313M2) & Cable

Noise Floor:

<0.002 m/s2 - Low Range, <0.020 m/s2 - High Range

Display:

Full Colour Graphic TFT Display (320 x 240 pixels)

Batteries:

4 x AA Cells, Typically 12 hours continuous use

Connections:

Input:             7 Pin Lemo Socket

Download:    USB Micro B (Cable Supplied)

Languages:

English UK, English US, Chinese, French, German, Italian, Portuguese Brazilian, Russian, Spanish

Environmental:

Temperature Operating Range: -10 to + 50°C

Humidity: Up to 90% RH Non-Condensing

Electromagnetic Compatibility:

Designed in accordance with the following Electromagnetic Compatibility Directives: -

  • SI 2005/281
  • 2004/108/EC

Case:

High Impact ABS plastic with tactile membrane keypad

What's in the Box

GA2009 VibA(8) Vibration Meter
KD 1012Hand-Arm Vibration Sensor (with choice of adding Whole-Body MEMS Seat Pad)
ZL1099A-03 Tri-axial accelerometer cable 3m
HARM Mounting Block
Protective System Carry Case
VIBdataPRO Vibration Analysis Software & Cable
