SKU
01GA2008

Castle Exilis GA2008 Vibration Meter

Castle Group
Add to Wish List Email to a Friend
The GA2008 Vibration Meter is a simple to use instrument, ideal for measuring acceleration, velocity and displacement. Ideal for checking fixed monitoring systems, condition maintenance prediction and other engineering operations.
US$1,410.75
Add to Compare

Product Specification unless deselected above

More Information
Measurement Condition Monitoring
Brand Castle Group
Available Outside the UK? Yes

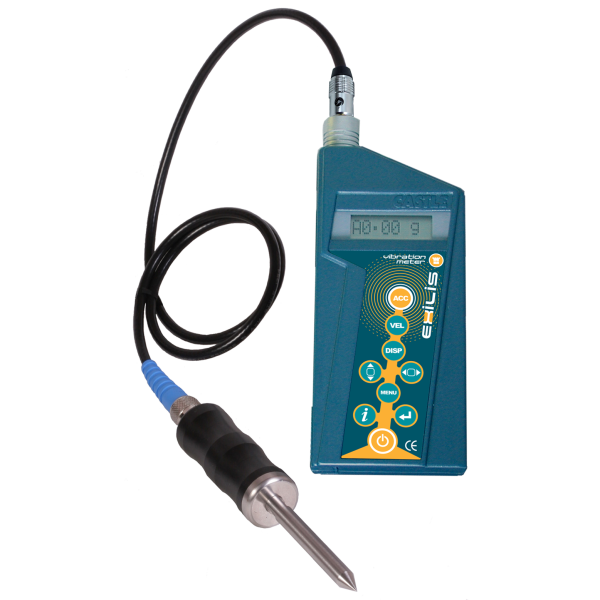

Castle Exilis GA2008 Vibration Meter

The Exilis GA2008 is a robust vibration meter capable of monitoring many types of vibration with excellent accuracy.

The small design of the Exilis means it is easily portable which allows it to be able to take vibration readings in any area with a vibration problem and store it in it's data logging system.

Applications

The uses for this instrument are far-reaching and widespread. One prime example would be a maintenance operator verifying results from a fixed monitoring system or taking measurements for maintenance prediction. Another example is a construction engineer checking that the vibration from a piling operation is not exceeding any environmental thresholds.


Features

  • Small and Light weight
  • Simple to Use
  • Highly Robust
  • Tactile Keypad
  • 8 Character LCD Display
  • Simple Data-logging of 9 Data-points
  • Comes complete with Accelerometer, Cable, Spike Probe and Case
  • Multiple Filters - Mechanical and Linear
  • Multiple Integration Modes - Acceleration, Velocity and Displacement
  • Multiple Measurements - RMS, Max RMS and Peak

Accelerometer 100mV/g ±20%
Acceleration Range 0.01 to 100g
Velocity Range 0.1 to 1000 mm/s
Displacement 0.1 to 1000μm (Above in RMS or Peak and in 2 ranges)
Mechanical Filter Frequency 10Hz - 1KHz
Linear Filter Frequency 10Hz - 10KHz
Memory non-volatile E2PROM memory which holds calibration data plus storage of 9 spot results.
Keypad 9 Key Tactile Keypad
Standards Compliance with EMC CE marking
Display 8 Character LCD Display
Intergration Acceleration, Velocity, Displacement
Filters Mechanical & Linear
Detectors RMS and Peak
Parameters Average, max
Overload Indication (Flashing alternate display)
Battery Indicator 4 Bar Representation
Weight 250g with batteries
Size 135 x 62 x 30mm
Batteries 1 x IEC No 6LR61 (Upto 40 hrs life with Duracel MN1604)

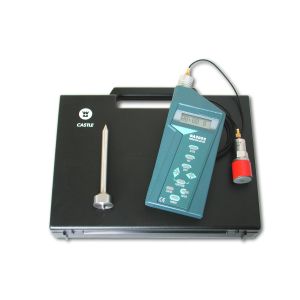

What's in the Box

This Kit Includes:
  • GA2008 Exilis Vibration Meter
  • KD1011 Single Axis Accelerometer
  • KD1206 Removable Spike Probe
  • 01ZL1097-01 1m Cable
  • 01VIBWORKPAD1 Assessment Workpad
  • 01USBSTICK Castle USB - Trend Analysis Module Included
