Occupational Noise Measurement System - NK122

Castle Group
Add to Wish List Email to a Friend

This Occupational Noise Measurement System is designed to give Health and Safety Managers, or any other professional with responsibilities for managing noise in the workplace, everything they need to protect your workforce from over exposure to noise and to help you ensure your company is complying with The Control of Noise at Work Regulations 2005.

US$3,182.18
Add to Compare

Product Specification unless deselected above

More Information
Measurement Parameters Ln, Leq, Le, Peak, Lmax, Lspl
Class Class 1
Weightings A, C, Z
Application Noise at Work
Noise Features Data Logging, USB Connectivity, Multi-Language
Brand Castle Group
Boxed Weight (kg) 1.5
Available Outside the UK? Yes

Download the Detail

SONIK-S Data Logging Noise Measurement System - NK122

The Noise Measurement System is designed to give Health and Safety Managers, or any other professional with responsibilities for managing noise in the workplace, everything they need to protect your workforce from over exposure to noise and to help you ensure your company is complying with The Control of Noise at Work Regulations 2005. With it's simple measurement set up and intuitive interface, the SONIK-S makes conducting occupational noise surveys simple and straightforward.

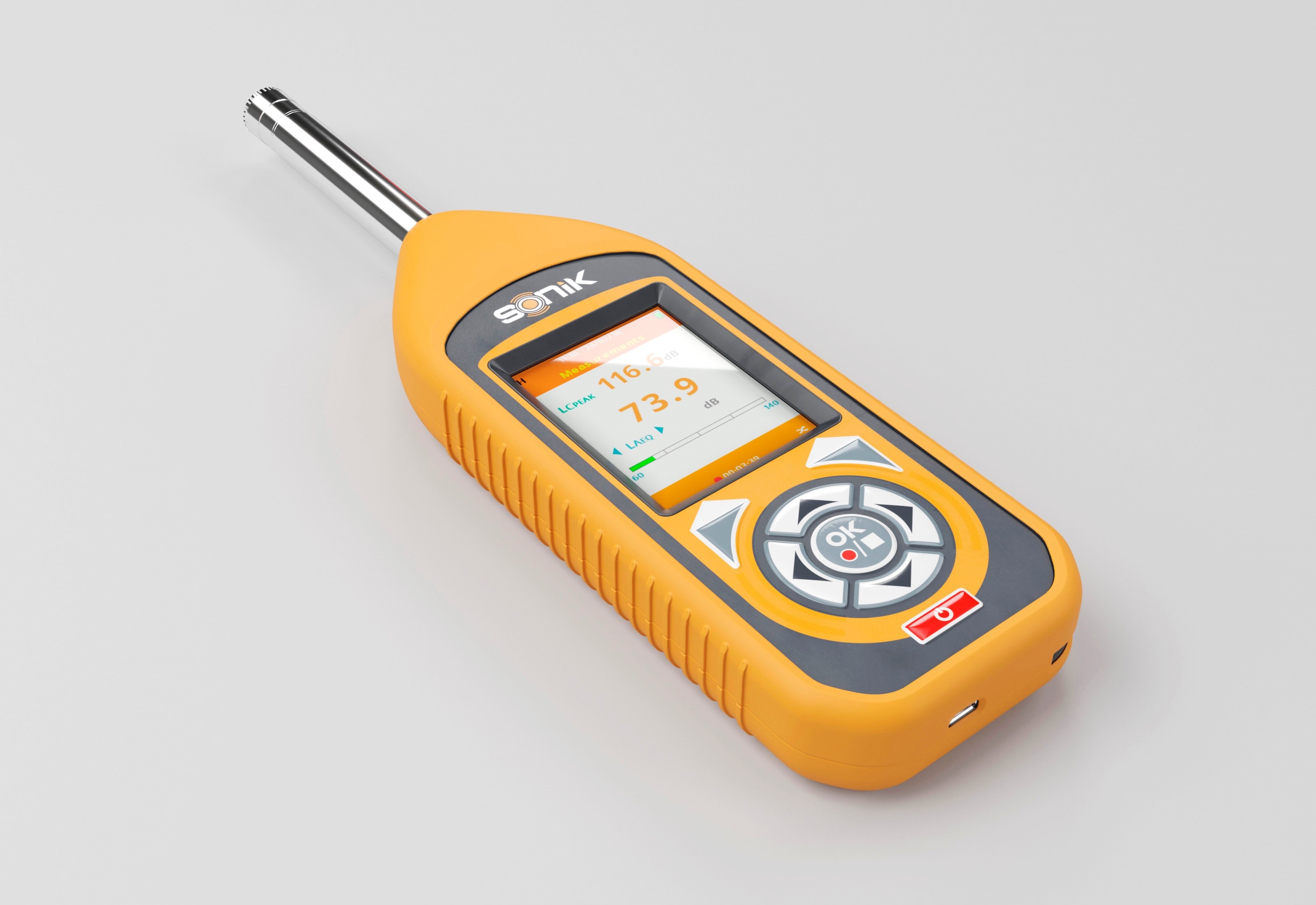

This system includes a Class 1 or Class 2 Sound Meter with protective rubber casing, Class 1 or Class 2 Acoustic Calibrator, PC Noise Analysis Software, Cloud Based Noise Analysis Software and a Protective Carry Case.

Applications

This SONIK-S Noise Measurement System is ideal for a range of Occupational Noise applications:

  • Occupational Noise Assessments for The Control of Noise at Work Regulations 2005
  • Hearing Protection Selection Assessments (via dBData software)
  • Simple Noise Level Testing
  • Fire Alarm Volume Testing
  • Machinery Servicing and Maintenance

Instrument Standards:

IEC 61672-1: 2002 Class 1 Group X

IEC 61672-1: 2002 Class 2 Group X

Languages:

English UK, English US, Chinese, French, German, Italian, Portuguese Brazilian, Russian, Spanish, Dutch, Greek

Level Ranges:

Range Name

Linear Range

Peak Range

Low

25 – 100 dB

40 – 103 dB

Medium

45 – 120 dB

60 – 123 dB

High

65 – 140 dB

80 – 143 dB

Quick Setup Modes (SONIK-SE Only):

Noise at Work, Environmental, All Parameters

Frequency Range

1 Hz - 20 kHz (electrical characteristics)

Class 1: 10 Hz - 20 kHz (including microphone)

Class 2: 20Hz - 8kHz (including microphone)

Microphone:

Class 1: ½” Pre-Polarized - Free Field (IEC)

Pressure (ANSI) Sensititvity (25mV/Pa)



Class 2: ½” Pre-Polarized - Free Field (IEC)

Pressure (ANSI) Sensititvity (25mV/Pa)

Measurement Channels: Two

Microphone Preamplifier:

Low Noise, Removable Preamplifier

Parameters:

SONIK-S:

Lp, Leq, Lmax, Lpeak, Exposure Pa2h, Lep'd, %Dose, %Dose Per Hour, Points, Points Per Hour, Under Range, Overload

SONIK-SE:

As SONIK-S, plus LE, L10, L90 and either L1, L5, L50, L95, L99

Noise Floor (Typical):

‘A’ Weighting < 16.0dB

‘C’ Weighting < 17.2dB

‘Z’ Weighting < 18.9dB

Linear Operating range: 75 dB

Display: 2.4” Full Colour TFT 240x320 pixels

Frequency Weighting:

‘A’, ‘C’ and ‘Z’

Combinations of ‘A’, ‘A’&’C’ simultaneous or ‘A’&’Z’ simultaneous available for Lp, Leq and Lmax



Batteries: 4 x AA (1. 5V) - Typically 20 hours continuous use (screen settings dependent)

Time Weighting: ‘Slow’, ’Fast’ and ‘Impulse’

External Power:Micro USB type B, 0.5A

Percentiles (SONIK-SE only):

L10, L90 and either L1, L5, L50, L95, L99

Connections: Micro USB type B

Exchange rate: 3dB, 4dB or 5dB

Environmental:

Temperature Operating Range: -10 to + 50ºC

Humidity: Up to 90% RH Non-Condensing

Criterion Level: 75dB, 80dB, 85dB or 90dB

Case:

High Impact ABS plastic with membrane keypad

Threshold Level: -5dB, -10dB or OFF

Size and Weight

Dimensions:

Including Pre-Amplifier:

260mm (H) x 67mm (W) x 26mm (D)

Excluding Pre-Amplifier:

184mm (H) x 67mm (W) x 26mm (D)

Memory: 4MB – Up to 4000 Data Intervals Maximum in one or multiple recordings

Weight:

207g (Without Batteries

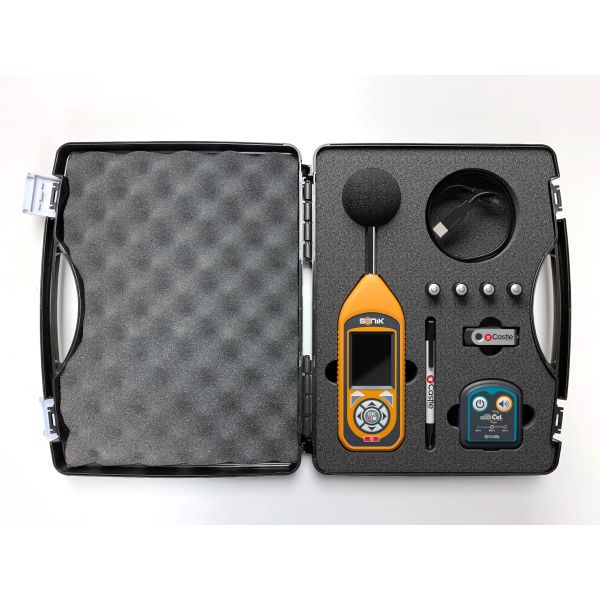

What's in the Box

NK122 Occupational Noise Measurement System

GA142S - SONIK Safety Data-logging Sound Meter Class 1

GA611 - Calibrator, Class 1

PC007 - dBdataPRO Noise Analysis Software & Cable

CCPROFREE - FREE Account for Castle Cloud - 1 Users, 1 Instrument

KA017 - Protective System Carry Case

dB001 - dBAir Rubber Boot Orange

NK123 Occupational Noise Measurement System Class 2

GA242S - SONIK Safety Data-logging Sound Meter Class 2

GA612 - Calibrator, Class 2

PC007 - dBdataPRO Noise Analysis Software & Cable

CCCPROFREE - FREE Account for Castle Cloud - 1 Users, 1 Instrument

KA017 - Protective System Carry Case

dB001 - dBAir Rubber Boot Orange

Software

SONIK Sound Meters work with Secure Cloud or PC Based Software

You can analyse your data using either Cloud or PC Based software that's free and simple to use.

Cloud Software - TheCastleCloud.com

The SONIK sound level meters can be used with TheCastleCloud.com, a secure Cloud based noise analysis software that can be accessed from any device with a browser and an internet connection. Your data is secure and easily manageable, and has full noise analysis features.

  • Start Account Completely Free
  • Powerful Database System
  • Numerous Calculators
  • Customised Reporting
  • PRO Accounts available for increased storage and features

PC Software - dBdataLite

Having instant access to all of your data on one screen means better decision making and streamlined operation. With all the data on-screen, dBdata allows you to manage the data files, copy out the data you want and print reports directly to hard copy.

For increased functionality, there is the option to upgrade to the full dBdataPRO software, which gives the benefit of greater data-manipulation, graphical views and analysis for hearing protection, dose calculations and NR curves.

Model Comparison

dBAirSonikSonus

Sound Meter Range >>

dBAir Sonik Sonus

Description >>

Top of the range sound level meters with extensive features, including WiFi Data Transfer and optional octave band analysis. Dedicated sound meters for Occupational and Environmental Noise assessments with very easy operation and impressive battery life. Proven and fully compliant sound level meters at an impressively low price.

Models >>

Click to visit the product page

GA141S GA141E GA141SE
GA142S GA142E GA142SE
GA116L GA116E GA116I
Safety Environmental Integrating
SAFETY ENV. SAFETY & ENV.
SAFETY ENV. SAFETY & ENV.
SAFETY ENV. INT.
Features
Voice Memo Recording


Audio Events Recording



1/1 Octave Bands


1/3 Octave Bands



Overload
Data Logging

Advanced Data Logging


USB Connectivity

WiFi Data Transfer


PC Software – Castle dBData


Cloud Software
castlecloud.com

Colour Screen

Download data as .CSV


Multi-Language

Parameters
LP (SQL)
LEQ
LMIN

LMAX
APEAK

CPEAK
ZPEAK

(Percentiles) LN



LTM3



LTM5



Noise Exposure Pa2h



% DOSE



HSE Exposure Points



LEPD (LEX)



LAVG


TWA


LE (SEL)


LDAY



LEVENING



LNIGHT



LDN



LDEN



NA (Level exceedance count)



Specifications
Battery Type
4 x AA (1.5v) 4 x AA (1.5v) 4 x AA (1.5v)
4 x AA (1.5v) 4 x AA (1.5v) 4 x AA (1.5v)
1 x PP3 (9v) 1 x PP3 (9v) 1 x PP3 (9v)
Battery Life *
8+ hrs 8+ hrs 8+ hrs
24+ hrs 24+ hrs 24+ hrs
8+ hrs 8+ hrs 8+ hrs
A weighting Noise Floor
16.0dB 16.0dB 16.0dB
16.0dB 8.0dB 16.0dB
18.6dB 12.0dB 32.0dB
C weighting Noise Floor
15.0dB 15.0dB 15.0dB
17.2dB 9.4dB 17.2dB
18.2dB 12.0dB 38.0dB
Z weighting Noise Floor
25.0dB 25.0dB 25.0dB
18.9dB 11.8dB 18.9dB
20.6dB 14.5dB N/AdB
Class
1 or 2 1 1 or 2
1 or 2 1 1 or 2
1 or 2 1 1 or 2
Time History
Advanced Advanced Advanced
Basic Basic Basic
Basic Basic N/A
No. of Ranges
2 2 2
3 3 3
3 3 3
Total Linear Range
25 - 140 20 - 130 25 - 140
25 - 140 20 - 130 25 - 140
32 - 140 22 - 130 41 - 140
Frequency Weighting (A, C, Z)
A, C, Z A, C, Z A, C, Z
A, C, Z A, C, Z A, C, Z
A, C, Z A, C, Z A, C
Time Weighting (Fast, Slow, Impulse)
F, S, I F, S, I F, S, I
F, S, I F, S, I F, S, I
F, S, I F, S, I F, S
Memory Size
32GB+ 32GB+ 32GB+
4MB 4MB 4MB
4MB 4MB N/A+

  *Screen settings dependant Comparison chart R1
